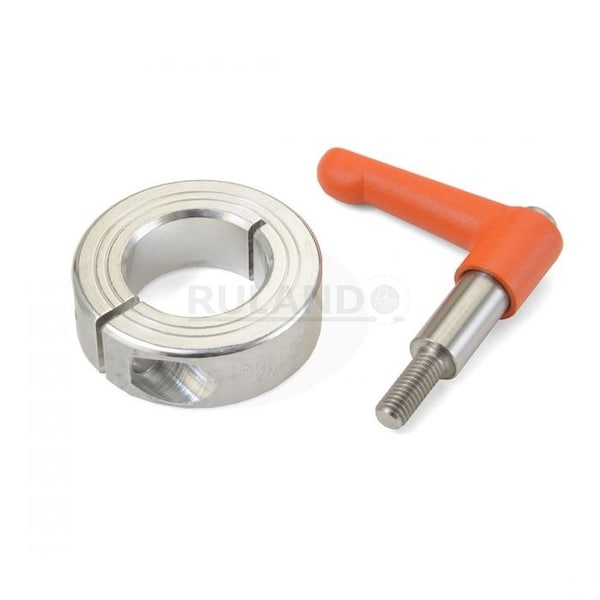

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MCL-34-A
Zoro # G208677032
product price:Â
$
50.79
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-34-A
- Zoro #
- G208677032
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- System of Measurement
- Metric
- Bore Tolerance
- +0.050/+0.012 mm
- Screw Seating Torque
- 16 N-m
- Item
- Quick Clamping Shaft Collar
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Collar Material Finish
- Bright
- Screw Material Grade
- 303
- Screw Location from Center
- 23.24 mm
- Handle Material
- Zinc
- Center to Lever Top
- 40.8 mm
- Handle Material Finish
- Powder Coated
- Shaft Tolerance
- +0.000/-0.013 mm
- Handle Color
- Orange
- Collar Material
- Aluminum
- Collar Material Grade
- 2024
- Bore Type
- Round
- Collar Construction
- 1-Piece
- Shaft Locking Type
- Clamp-On
- Lever Part Number
- LF45-CL-M6: 20-ZS-O
- Weight
- 0.2429 lbs
- Number of Screws
- 1
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 34 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
