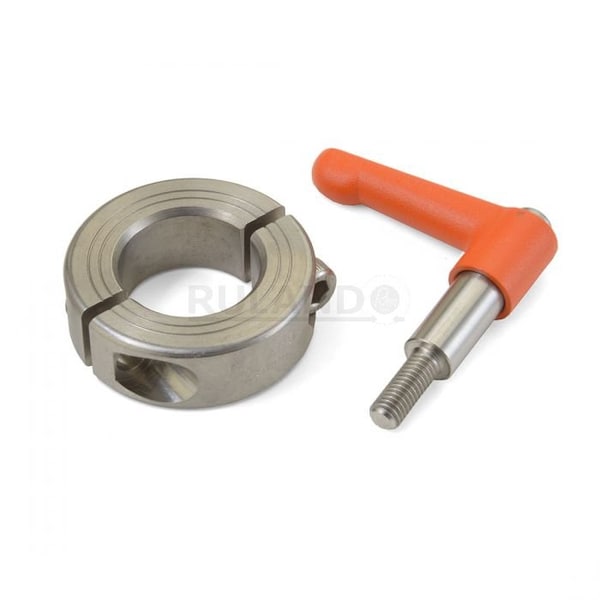

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MSP-22-SS
Zoro # G608678295
product price:Â
$
54.69
/ea
Key Features
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Screw Seating Torque
9.6 N-m
Width Tolerance
+0.076/-0.254 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MSP-22-SS
- Zoro #
- G608678295
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Item
- Quick Clamping Shaft Collar
- Bore Tolerance
- +0.050/+0.012 mm
- Screw Seating Torque
- 9.6 N-m
- System of Measurement
- Metric
- Collar Construction
- 2-Piece
- Collar Material Finish
- Bright
- Collar Material Grade
- 303
- Collar Material
- Stainless Steel
- Shaft Tolerance
- +0.000/-0.013 mm
- Bore Type
- Round
- Resistance Properties
- Corrosion-Resistant
- Handle Color
- Orange
- Center to Lever Top
- 38.8 mm
- Handle Material
- Zinc
- Lever Part Number
- LF45-CL-M6: 18-ZS-O
- Shaft Locking Type
- Clamp-On
- Handle Material Finish
- Powder Coated
- Screw Location from Center
- 16 mm
- Screw Material Grade
- 303
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 22 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 42 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.6 N-m
