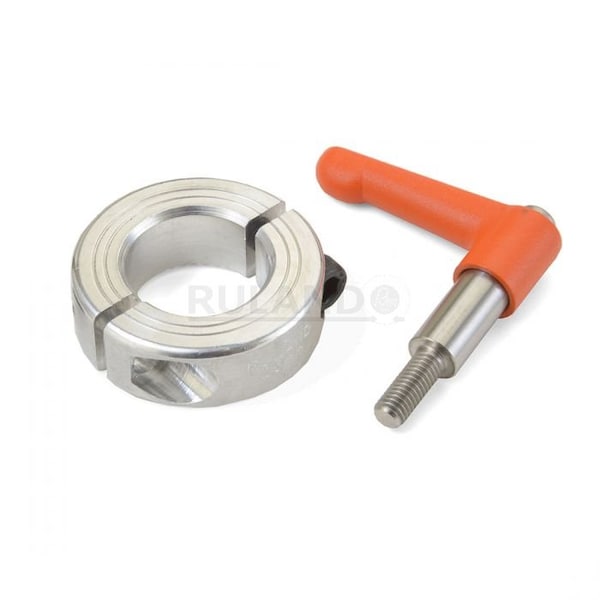

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MSP-24-A
Zoro # G908673143
product price:Â
$
45.39
/ea
Key Features
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Width Tolerance
+0.076/-0.254 mm
Screw Seating Torque
16 N-m
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MSP-24-A
- Zoro #
- G908673143
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Bore Tolerance
- +0.050/+0.012 mm
- System of Measurement
- Metric
- Item
- Quick Clamping Shaft Collar
- Screw Seating Torque
- 16 N-m
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Type
- Round
- Handle Material
- Zinc
- Handle Color
- Orange
- Collar Construction
- 2-Piece
- Screw Material Grade
- 303
- Collar Material
- Aluminum
- Collar Material Grade
- 2024
- Center to Lever Top
- 38.8 mm
- Collar Material Finish
- Bright
- Shaft Locking Type
- Clamp-On
- Shaft Tolerance
- +0.000/-0.013 mm
- Screw Location from Center
- 17.5 mm
- Lever Part Number
- LF45-CL-M6: 18-ZS-O
- Handle Material Finish
- Powder Coated
- Number of Screws
- 2
- Weight
- 0.1908 lbs
- Number of Pieces
- 2
- Collar Style
- Shaft Collar with Clamping Lever
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 24 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
