Shop RULAND

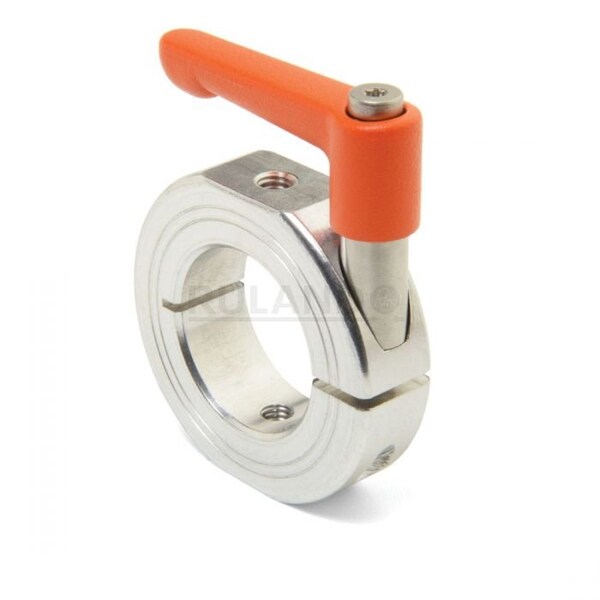

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MCL-20-A

  • Zoro # G108673745

product price:
$
46.49
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Width Tolerance
+0.076/-0.254 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LVO-OF-MCL-20-A
Zoro #
G108673745
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
System of Measurement
Metric
Item
Quick Clamping Shaft Collar
Distance Across Flats
36 mm
Screw Seating Torque
16 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Handle Color
Orange
Component Mount Type
Outer Diameter Holes with Wrench Flats
Screw Material Grade
303
Lever Part Number
LF45-CL-M6: 18-ZS-O
Center to Lever Top
38.8 mm
Flat to Bore
8 mm
Screw Location from Center
14.73 mm
Bore Type
Round
Shaft Tolerance
+0.000/-0.013 mm
Collar Material
Aluminum
Shaft Locking Type
Clamp-On
Handle Material Finish
Powder Coated
Handle Material
Zinc
Collar Material Finish
Bright
Collar Construction
1-Piece
Collar Material Grade
2024
Weight
0.1702 lbs
Number of Screws
1

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
