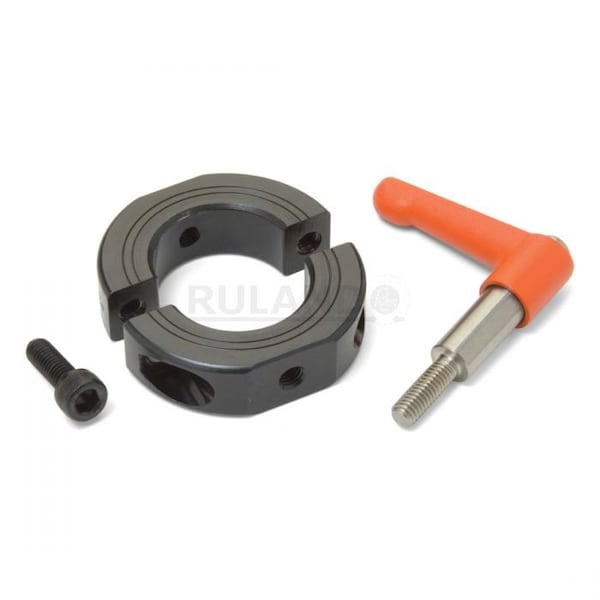

Ruland SHAFT COLLAR QUICK CLAMPING LVO-OF-MSP-10E-F - main

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MSP-10E-F

  • Zoro # G208673904

product price:  $50.19
/ea

Key Features

Bore Dia.
0.6250 in
Material
Steel
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
34 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LVO-OF-MSP-10E-F
Zoro #
G208673904
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.6250 in
Outside Dia.
34 mm
Dimension Type
Metric with Inch Bore
Width
13 mm
Screw Size
M5
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
5/8 in
Lever Height
35 mm
Lever Length
30 mm
Screw Thread Size
M5
For Shaft Diameter
5/8 in
Mount Hole Thread Size
M5
Collar Outside Diameter
34 mm
Collar Width
13 mm

Details

Material
Steel
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
System of Measurement
Metric with Inch Bore
Screw Seating Torque
9.5 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
Bore Tolerance
+0.0020/+0.0005 in
Distance Across Flats
30 mm
Collar Material Grade
1215
Resistance Properties
Corrosion Resistant
Lever Part Number
LF30-CL-M5: 15-ZS-O
Collar Material Finish
Black Oxide
Collar Material
Carbon Steel
Flat to Bore
7 mm
Bore Type
Round
Screw Material Grade
303
Handle Material
Zinc
Handle Color
Orange
Component Mount Type
Outer Diameter Holes with Wrench Flats
Center to Lever Top
35.2 mm
Shaft Locking Type
Clamp On
Screw Location from Center
12.5 mm
Handle Material Finish
Powder Coated
Shaft Tolerance
+0.0000/-0.0005 in
Collar Construction
2-Piece
Flat to Bore (FB)
7 mm
Threaded Mounting Hole
M5
Finish
Black Oxide
Screw Location (R)
12.50 mm
Weight
0.194 lbs
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Number of Screws
2

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
