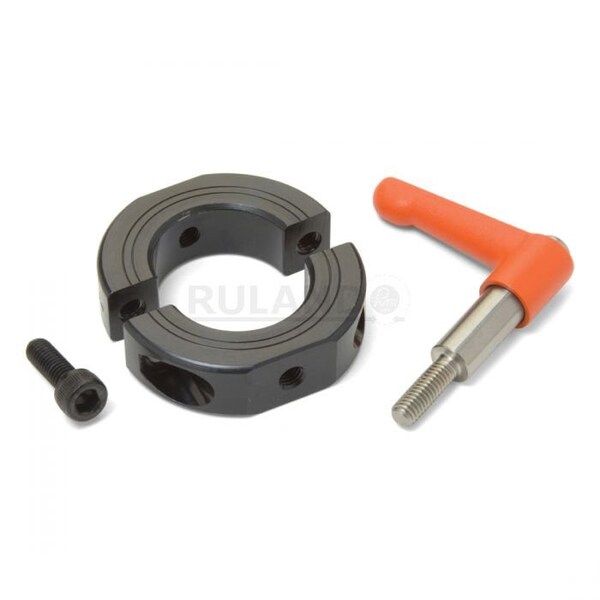

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-OF-MSP-20-F
Zoro # G008674989
product price:Â
$
48.59
/ea
Key Features
Screw Material
Stainless Steel
Width Tolerance
+0.076/-0.254 mm
Distance Across Flats
36 mm
Screw Seating Torque
16 N-m
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-OF-MSP-20-F
- Zoro #
- G008674989
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Distance Across Flats
- 36 mm
- Screw Seating Torque
- 16 N-m
- System of Measurement
- Metric
- Item
- Quick Clamping Shaft Collar
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.050/+0.012 mm
- Screw Material Grade
- 303
- Center to Lever Top
- 38.8 mm
- Bore Type
- Round
- Lever Part Number
- LF45-CL-M6: 18-ZS-O
- Handle Material Finish
- Powder Coated
- Collar Construction
- 2-Piece
- Shaft Locking Type
- Clamp-On
- Handle Material
- Zinc
- Component Mount Type
- Outer Diameter Holes with Wrench Flats
- Flat to Bore
- 8 mm
- Handle Color
- Orange
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Material Finish
- Black Oxide
- Resistance Properties
- Corrosion-Resistant
- Collar Material
- Carbon Steel
- Collar Material Grade
- 1215
- Screw Location from Center
- 14.73 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 16 N-m
