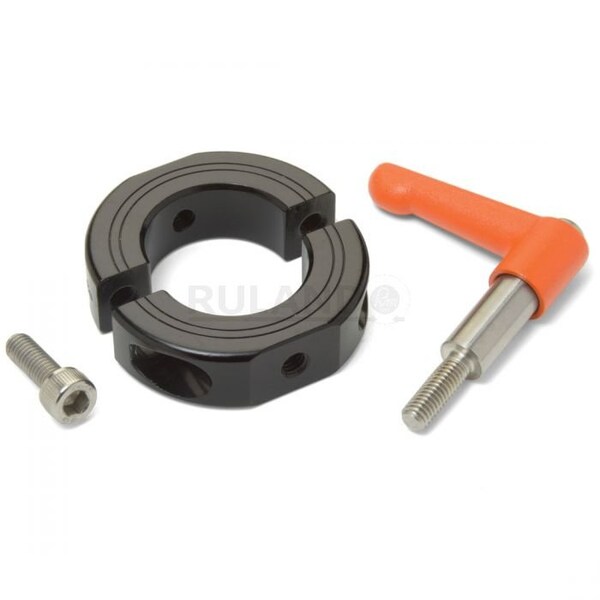

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MSP-8E-AN

  • Zoro # G208675106

product price:  $68.79
/ea

Key Features

Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M4
Screw Material
Stainless Steel
Screw Seating Torque
2.5 N-m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LVO-OF-MSP-8E-AN
Zoro #
G208675106
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M4
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
1/2 in
Collar Outside Diameter
30 mm
Bore Diameter
1/2 in
Collar Width
11 mm
Screw Thread Size
M4
Mount Hole Thread Size
M4
Lever Height
32 mm
Lever Length
30 mm

Details

Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Screw Seating Torque
2.5 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Distance Across Flats
26 mm
Bore Tolerance
+0.0020/+0.0005 in
Item
Quick Clamping Shaft Collar
Collar Material Finish
Anodized
Component Mount Type
Outer Diameter Holes with Wrench Flats
Shaft Locking Type
Clamp-On
Handle Color
Orange
Resistance Properties
Corrosion-Resistant
Center to Lever Top
32.2 mm
Handle Material Finish
Powder Coated
Flat to Bore
6 mm
Screw Location from Center
11 mm
Screw Material Grade
303
Collar Construction
2-Piece
Collar Material
Aluminum
Bore Type
Round
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material Grade
2024
Lever Part Number
LF30-CL-M4: 12-ZS-O
Handle Material
Zinc
Weight
0.0971 lbs
Number of Screws
2

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Collar Width 11 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
