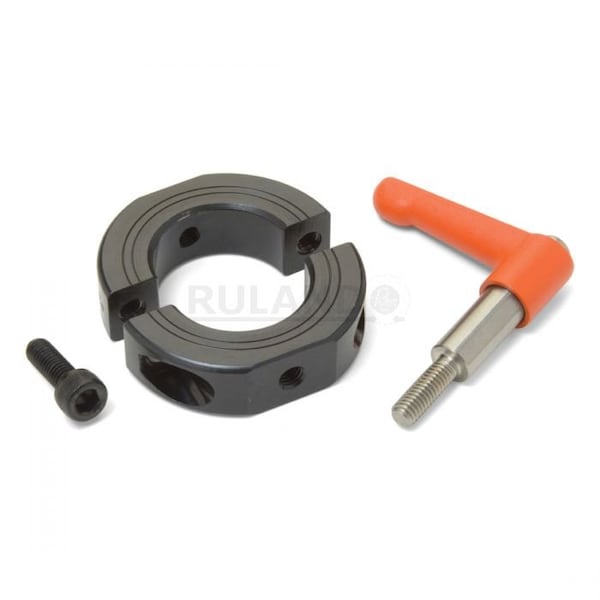

Ruland SHAFT COLLAR QUICK CLAMPING LVO-OF-MSP-8E-F - main

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MSP-8E-F

  • Zoro # G108675121

product price:  $59.15
/ea

Key Features

Bore Dia.
0.5000 in
Material
Steel
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
30 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LVO-OF-MSP-8E-F
Zoro #
G108675121
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.5000 in
Outside Dia.
30 mm
Dimension Type
Metric with Inch Bore
Width
13 mm
Screw Size
M4
Width Tolerance
+0.076/-0.254 mm
Lever Height
32 mm
Bore Diameter
1/2 in
Mount Hole Thread Size
M4
For Shaft Diameter
1/2 in
Collar Outside Diameter
30 mm
Collar Width
11 mm
Screw Thread Size
M4
Lever Length
30 mm

Details

Material
Steel
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Material
303 Stainless Steel
Distance Across Flats
26 mm
Item
Quick Clamping Shaft Collar
Screw Seating Torque
4.6 N-m
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Component Mount Type
Outer Diameter Holes with Wrench Flats
Screw Location from Center
11 mm
Lever Part Number
LF30-CL-M4: 12-ZS-O
Collar Material Finish
Black Oxide
Collar Material
Carbon Steel
Bore Type
Round
Resistance Properties
Corrosion Resistant
Handle Color
Orange
Shaft Tolerance
+0.0000/-0.0005 in
Handle Material
Zinc
Screw Material Grade
303
Handle Material Finish
Powder Coated
Collar Construction
2-Piece
Shaft Locking Type
Clamp On
Center to Lever Top
32.2 mm
Flat to Bore
6 mm
Collar Material Grade
1215
Threaded Mounting Hole
M4
Weight
0.1485 lbs
Finish
Black Oxide
Number of Screws
2
Screw Location (R)
11.00 mm
Flat to Bore (FB)
6 mm
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Collar Width 11 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
