Shop RULAND

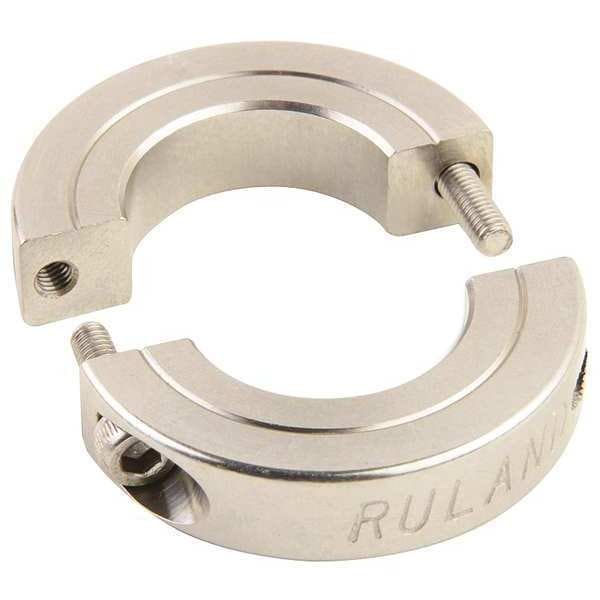

Shaft Collar, SS, 2 pcs, 5mm Bore Dia.

  • Mfr # ENSP25-5MM-SS

  • Zoro # G2393548

product price:  $22.29
/ea

Key Features

Number of Pieces
2
Collar Style
Clamp
Screw Size
M2.5 x 8
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
ENSP25-5MM-SS
Zoro #
G2393548
UPC #
634529139073
Country of Origin
United States

Dimensions

Screw Size
M2.5 x 8
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M2.5x8
Collar Width
6 mm
Clearance Diameter
27.3 mm
For Shaft Diameter
5 mm
Bore Diameter
5 mm
Collar Outside Diameter
25 mm

Details

Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
System of Measurement
Metric
Item
Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015, REACH Compliant, RoHS Compliant
Screw Seating Torque
0.73 N-m
Bore Tolerance
+0.050/+0.012 mm
Screw Location from Center
10.25 mm
Shaft Tolerance
+0.000/-0.013 mm
Collar Material
303 Stainless Steel
Minimum Operating Temperature
-40 Degrees C
Collar Material Finish
Bright
Shaft Locking Type
Clamp-On
Resistance Properties
Corrosion-Resistant
Collar Material Grade
303
Screw Material Finish
Bright
Included Screws
(2) Hex Socket Cap Screw
Bore Type
Round
Maximum Operating Temperature
176 Degrees C
Collar Construction
2 Piece Clamp
Screw Material Grade
304
Weight
0.0446 lbs
Number of Screws
2

Description

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 5 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 25 mm, Inside Height to Flat Not Applicable, Clearance Diameter 27.3 mm, Collar Width 6 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
