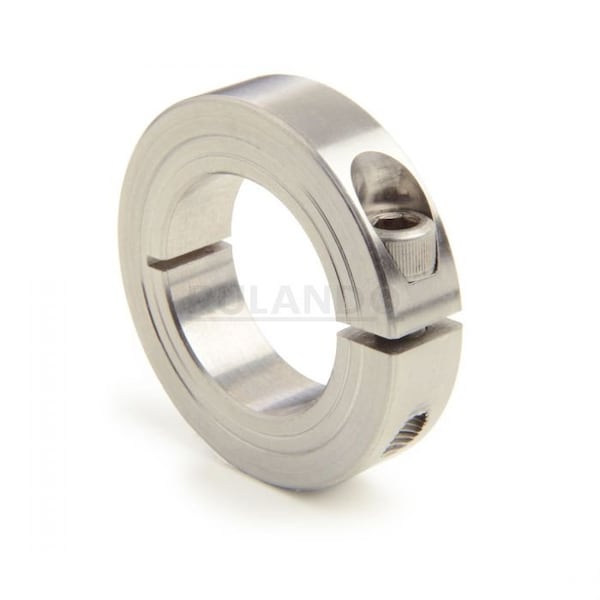

Shaft Collar, Stainless Steel, 316, +0.003/-0.010 in

  • Mfr # CL-13-ST

  • Zoro # G008678857

product price:
$
34.39
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
1/4"-28
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CL-13-ST
Zoro #
G008678857
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Item
Shaft Collar
System of Measurement
Inch
Standards
ANSI, Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
110 lb-in
Bore Tolerance
+0.0020/+0.0005 in
Screw Material Grade
316
Resistance Properties
Corrosion-Resistant
Shaft Locking Type
Clamp-On
Screw Location from Center
0.61 in
Included Screws
Clamp Screw
Collar Material Finish
Bright
Maximum Operating Temperature
350 Degrees F
Collar Construction
1-Piece
Minimum Operating Temperature
-40 Degrees F
Collar Material
Stainless Steel
Bore Type
Round
Collar Material Grade
316
Shaft Tolerance
+0.0000/-0.0005 in
Screw Material Finish
Bright
Weight
0.2119 lbs
Number of Screws
1

Description

Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 13/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 1 5/8 in, Inside Height to Flat Not Applicable, Clearance Diameter 1.92 in, Collar Width 1/2 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 316, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
