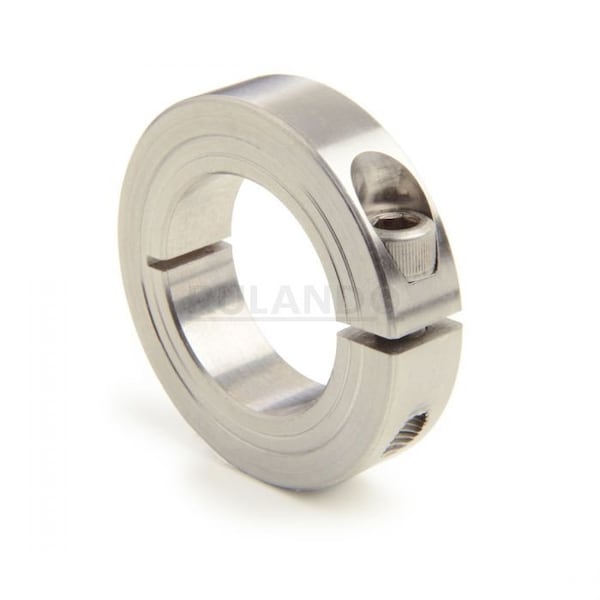

Shaft Collar, Stainless Steel, 345 lb-in, +0.0000/-0.0005 in

  • Mfr # CL-43-ST
  • Zoro # G608678929
product price:
$
282.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
3/8"-24
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CL-43-ST
Zoro #
G608678929
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Standards
ANSI, Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Shaft Collar
System of Measurement
Inch
Screw Seating Torque
345 lb-in
Bore Tolerance
+0.0020/+0.0005 in
Collar Material Finish
Bright
Screw Material Finish
Bright
Collar Construction
1-Piece
Shaft Locking Type
Clamp-On
Bore Type
Round
Screw Material Grade
316
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material
Stainless Steel
Minimum Operating Temperature
-40 Degrees F
Included Screws
Clamp Screw
Screw Location from Center
1.69 in
Resistance Properties
Corrosion-Resistant
Collar Material Grade
316
Maximum Operating Temperature
350 Degrees F
Weight
1.6551 lbs
Number of Screws
1

Description

Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 2 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 4 in, Inside Height to Flat Not Applicable, Clearance Diameter 4.27 in, Collar Width 7/8 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 316, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
