Shaft Collar, Stainless Steel, Clamp On, 1.1 N-m
Mfr # MCL-8-AN
Zoro # G508672058
product price:Â $7.69
/ea
Sold in multiples of 2 for $15.38
Key Features
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Width Tolerance
+0.076/-0.254 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
MCL-8-AN
Zoro #
G508672058
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Collar Outside Diameter
18 mm
Collar Width
9 mm
Screw Thread Size
M3x8
Bore Diameter
8 mm
Screw Length
8 mm
For Shaft Diameter
8 mm
Clearance Diameter
22.4 mm
Screw Size
M3 x 8
Width
9 mm
Bore Dia.
8 mm
Clearance Dia.
22.4 mm
Outside Dia.
18 mm
Description

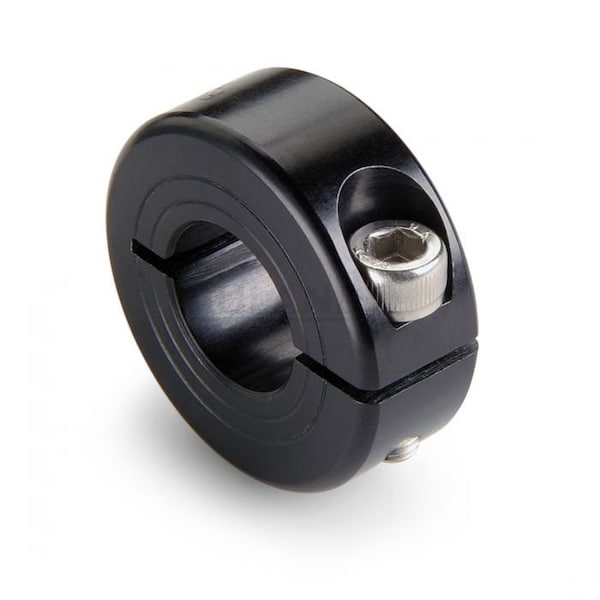

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 8 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 18 mm, Inside Height to Flat Not Applicable, Clearance Diameter 22.4 mm, Collar Width 9 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
