Shop RULAND

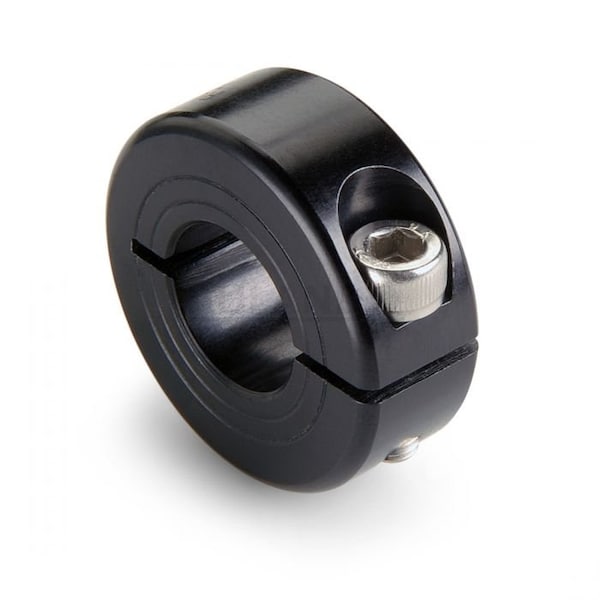

Shaft Collar, Stainless Steel, Clamp Screw, 16 mm

  • Mfr # MCL-3-AN

  • Zoro # G308672043

product price:
$
7.79
/ea
Sold in multiples of 2 for $15.58

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M3 x 8
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MCL-3-AN
Zoro #
G308672043
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Item
Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Screw Seating Torque
1.1 N-m
Screw Location from Center
5.51 mm
Collar Construction
1-Piece
Shaft Tolerance
+0.000/-0.013 mm
Screw Material Finish
Bright
Collar Material Finish
Anodized
Screw Material Grade
18-8 300 Series
Resistance Properties
Corrosion-Resistant
Minimum Operating Temperature
-40 Degrees F
Collar Material Grade
2024
Included Screws
Clamp Screw
Bore Type
Round
Collar Material
Aluminum
Maximum Operating Temperature
350 Degrees F
Shaft Locking Type
Clamp-On
Weight
0.0108 lbs
Number of Screws
1

Description

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 3 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 16 mm, Inside Height to Flat Not Applicable, Clearance Diameter 20.8 mm, Collar Width 9 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
