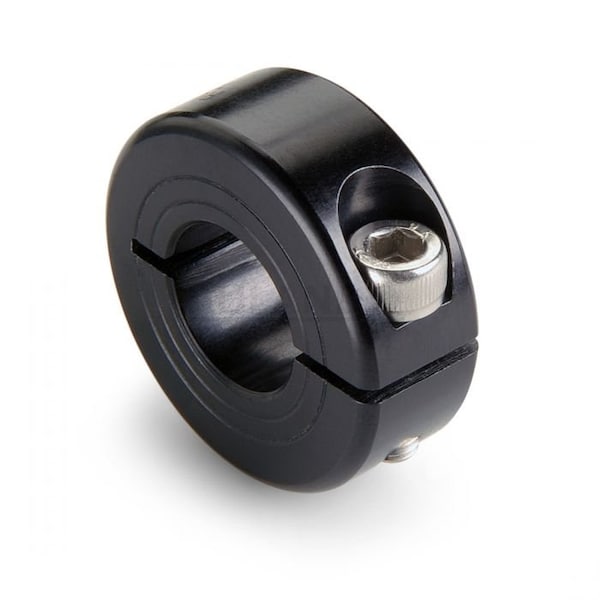

Shaft Collar, Stainless Steel, Clamp Screw, 2024
Mfr # MCL-42-AN
Zoro # G608672026
product price: $34.79
/eaKey Features
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Width Tolerance
+0.076/-0.254 mm
Screw Seating Torque
23 N-m
System of Measurement
Metric
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MCL-42-AN
Zoro #
G608672026
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M8x25
Screw Length
25 mm
Clearance Diameter
80.1 mm
Collar Outside Diameter
73 mm
Bore Diameter
42 mm
For Shaft Diameter
42 mm
Collar Width
19 mm
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 42 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 73 mm, Inside Height to Flat Not Applicable, Clearance Diameter 80.1 mm, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
