Shop RULAND

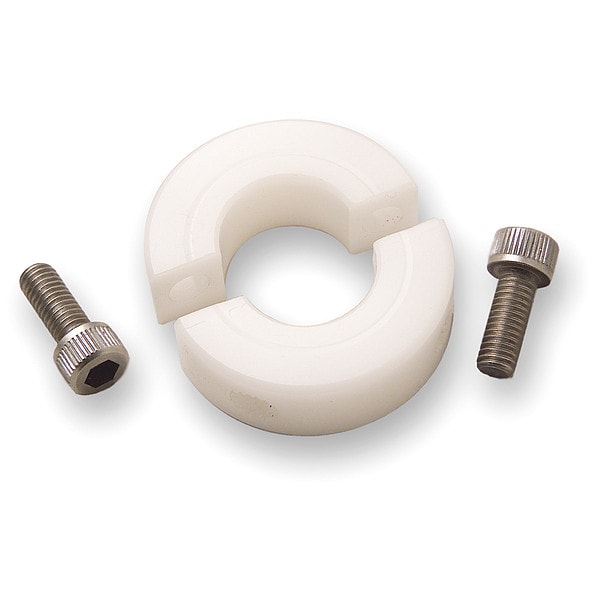

Shaft Collar, Stainless Steel, Plastic, Acetal

  • Mfr # MSP-7E-P

  • Zoro # G808672147

product price:
$
13.59
/ea

Key Features

Number of Pieces
2
Collar Style
Clamp
Screw Size
M4
Operating Temp. Range
-10 Degrees to 185 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MSP-7E-P
Zoro #
G808672147
UPC #
-
Country of Origin
United States
Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-10 Degrees to 185 Degrees F
Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
Screw Seating Torque
1.1 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Shaft Collar
System of Measurement
Metric with Inch Bore
Screw Location from Center
10.01 mm
Screw Material Finish
Bright
Resistance Properties
Corrosion-Resistant
Minimum Operating Temperature
-10 Degrees F
Bore Type
Round
Collar Material Grade
Acetal
Collar Construction
2-Piece
Maximum Operating Temperature
185 Degrees F
Included Screws
(2) Clamp Screw
Collar Material Finish
Plain
Shaft Locking Type
Clamp-On
Shaft Tolerance
+0.0000/-0.0005 in
Screw Material Grade
18-8 300 Series
Collar Material
Plastic
Number of Screws
2
Weight
0.02326 lbs

Description

Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Clearance Diameter 32 mm, Collar Width 11 mm, Collar Material Plastic, Keyway Width Not Applicable, Collar Material Grade Acetal, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
