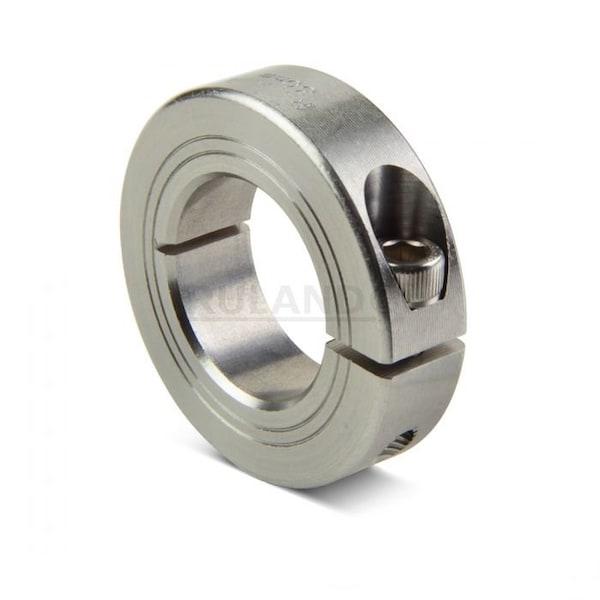

Shaft Collar, Titanium, +0.076/-0.254 mm, Clamp On
Mfr # MCL-16E-TI
Zoro # G908678940
product price: $380.99
/ea
Free Shipping & Returns
Key Features
Screw Material
Titanium
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Width Tolerance
+0.076/-0.254 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MCL-16E-TI
Zoro #
G908678940
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
1 in
For Shaft Diameter
1 in
Collar Width
15 mm
Collar Outside Diameter
45 mm
Screw Thread Size
M6
Clearance Diameter
52.1 mm
Details
Screw Material
Titanium
Item
Shaft Collar
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Screw Material Finish
Bright
Bore Type
Round
Collar Construction
1-Piece
Screw Location from Center
17.5 mm
Maximum Operating Temperature
500 Degrees F
Included Screws
Clamp Screw
Collar Material
Titanium
Minimum Operating Temperature
-40 Degrees F
Collar Material Finish
Bright
Shaft Tolerance
+0.0000/-0.0005 in
Shaft Locking Type
Clamp On
Collar Material Grade
Grade 5
Description
Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 in, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Clearance Diameter 52.1 mm, Collar Width 15 mm, Collar Material Titanium, Keyway Width Not Applicable, Collar Material Grade Grade 5, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Titanium
