  11. Shaft Collar, Titanium, 11 mm, M4

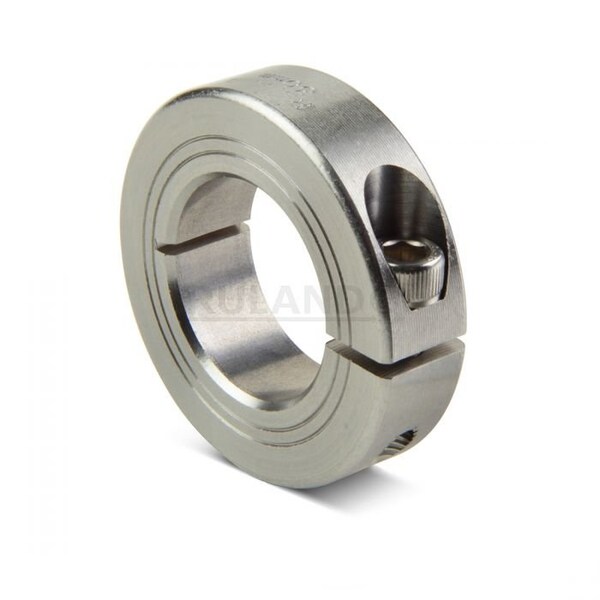

Ruland Shaft Collar, Titanium, 11 mm, M4 MCL-8E-TI - main

Shaft Collar, Titanium, 11 mm, M4

  • Mfr # MCL-8E-TI

  • Zoro # G308671961

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Screw Material
Titanium
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Width Tolerance
+0.076/-0.254 mm
System of Measurement
Metric with Inch Bore
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MCL-8E-TI
Zoro #
G308671961
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M4
Collar Outside Diameter
30 mm
For Shaft Diameter
1/2 in
Collar Width
11 mm
Bore Diameter
1/2 in
Clearance Diameter
33.7 mm

Details

Screw Material
Titanium
Bore Tolerance
+0.0020/+0.0005 in
Item
Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Included Screws
Clamp Screw
Bore Type
Round
Shaft Locking Type
Clamp On
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material Finish
Bright
Collar Material Grade
Grade 5
Collar Construction
1-Piece
Collar Material
Titanium
Minimum Operating Temperature
-40 Degrees F
Screw Location from Center
11 mm
Screw Material Finish
Bright
Maximum Operating Temperature
350 Degrees F

Description

Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Clearance Diameter 33.7 mm, Collar Width 11 mm, Collar Material Titanium, Keyway Width Not Applicable, Collar Material Grade Grade 5, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Titanium
