  11. Urethane Spider, Tq 97 In-Lbs, JC26/MJC41
Shop All Jaw Type Couplings
Ruland

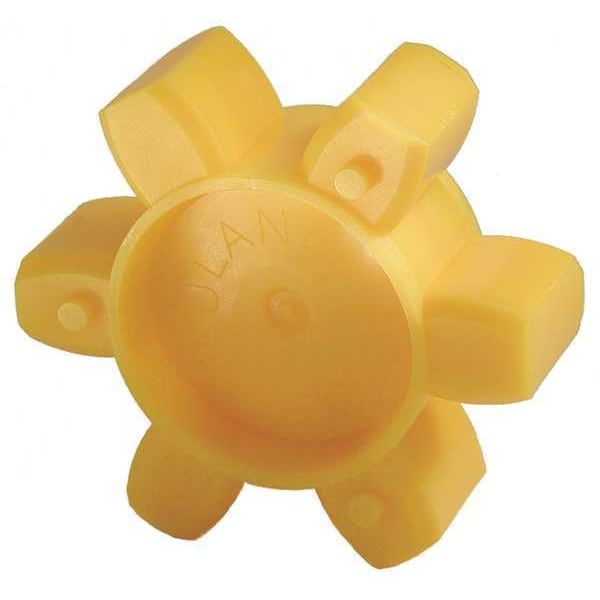

Urethane Spider, Tq 97 In-Lbs, JC26/MJC41

product price: $21.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size - Jaw Couplings JC26/JCC26/MJC41/MJCC41/MJS41
  • Material - Spiders Urethane
  • Max. Torque (In.-Lbs.) 194
  • Max. Axial Misalignment (In.) 0.05 in
  • HP Rating @ 100 RPM 0.3078
See all product information

Product Information

Dimensions

Size - Jaw Couplings JC26/JCC26/MJC41/MJCC41/MJS41
Width (In.) 0.542 in
Coupling Size JC26, JCC26, JS26, JSC26, MJC41, MJCC41, MJS41, MJSC41
Spider Width 0.59 in
Outside Diameter 1 5/8 in

Details

Material - Spiders Urethane
Max. Torque (In.-Lbs.) 194
Max. Axial Misalignment (In.) 0.05 in
HP Rating @ 100 RPM 0.3078
Temp. Range -10 Degrees to 180 Degrees F
Rated Torque 194 in-lb
Type Urethane Spider
Max. Parallel Misalignment (In.) 0.006 in
Color Yellow
Serviceable Temp. Range (F) -10 to 180
Item - Jaw Coupling Spiders Curved Jaw Coupling Insert
Item Jaw Coupling Insert
Max. Angular Misalignment 0.9 Degrees
Torsional Stiffness (Deg./In.-Lbs.) 0.012
Max. RPM 8,000 RPM
Torque (In.-Lbs.) 97
For Misalignment Type Angular, Axial, Parallel
Maximum Speed 8,000 RPM
Weight 0.0257 lb
Spider Material Polyurethane
Angular Misalignment 0.9 Degrees
Compatible Hub Manufacturer Part Number JC26, JCC26, JS26, JSC26, MJC41, MJCC41, MJS41, MJSC41
Axial Motion 0.05 in
Deform Torque 194 lb-in
Maximum Torque 97 in-lb
Parallel Misalignment 0.006 in
Torsional Stiffness 83.3 in-lb/Deg
Resistance Properties Chemical Resistant, Oil Resistant
Standards Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Zero Backlash Yes
Maximum Operating Temperature 180 Degrees F
System of Measurement Inch
Fail Safe Yes
Full Bearing Support Required Yes
Working Torque 97 in-lb
Horsepower @ 100 RPM 0.3078 hp
Number of Teeth 6
Spider Type Solid Center Spider
Durometer Hardness 92A
Minimum Operating Temperature -10 Degrees F

Description

Jaw Coupling Insert, Coupling Size JC26, JCC26, JS26, JSC26, MJC41, MJCC41, MJS41, MJSC41, Outside Diameter 1 5/8 in, System of Measurement Inch, Maximum Speed 8,000 RPM, Horsepower @ 100 RPM 0.3078 hp, Spider Material Polyurethane, Maximum Torque 97 in-lb, Parallel Misalignment 0.006 in, Durometer Hardness 92A, Axial Motion 0.05 in, Angular Misalignment 0.9 Degrees , Color Yellow, Compatible Hub Manufacturer Part Number JC26, JCC26, JS26, JSC26, MJC41, MJCC41, MJS41, MJSC41
