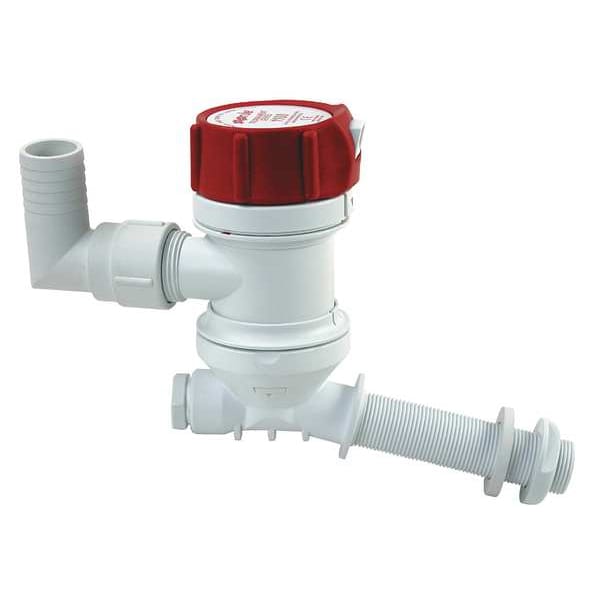

Rule Pump, 3/4 MNPT Angled, 2.1A 401C - main

Pump, 3/4 MNPT Angled, 2.1A

  • Mfr # 401C

  • Zoro # G2740753

product price: $72.49
/ea

Key Features

Max. Head
8 ft
Amps
2.5 A
GPH of Water @ 5 Ft. of Head
180
Cord Length (Ft.)
2
GPH of Water @ 3.35 Ft. of Head
282
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
401C
Zoro #
G2740753
UPC #
042237095848
Country of Origin
Mexico

Dimensions

Cord Length (Ft.)
2
Height (In.)
6
Dia. (In.)
3
Overall Height
6 in
Diameter
3 in
Overall Width
3 in
Compatible Intake Pipe Size
4 in
Compatible Discharge Pipe Size
3/4 in

Details

Item
Livewell Pump
Max. Head
8 ft
Amps
2.5 A
GPH of Water @ 5 Ft. of Head
180
GPH of Water @ 3.35 Ft. of Head
282
Operation
Nonautomatic
Shaft Material
Stainless Steel
Application
Used as a Water Circulation Pump in Livewell/Baitwell Tanks
Material
Glass Filled Nylon
Hose Outlet (In.)
3/4 NPSM
Max. Head (Ft.)
8
Design
Glass Filled Nylon Base, Housing and Impeller, Stainless Steel Shaft, Permanent Magnet Motor and Dual Shaft Seal
Includes
3/4" Right Angle Hosebarb Adapter and 3/4" Straight Hosebarb Adapter
GPH of Water @ 0 Ft. of Head
500 @ 13.6V
Inlet
3/4" MNPT Angled
GPH of Water @ 6.7 Ft. of Head
72
Type
Marine Circulation
Voltage
12VDC
Rated Voltage
12V DC
Body Material
Glass Filled Nylon
Discharge Location
Side
Intake Connection Style
Through-Hull
Electrical Connection Type
Hardwired
Intake Thread Type
NPS
Discharge Connection Style
NPSM
Nameplate Voltage
12V DC
Compatible Media Type
Water
Pump Mounting Position
Angled Pickup Tube
Pump Activation Type
Electrically Activated
Pump Housing Material
Glass Filled Nylon
Maximum Feet of Head
8 ft
Maximum Flow Rate @ 1 Feet of Head
500 gph
Pump Type
Submersible
Horsepower
33/1000 hp

Description

Livewell Pump, Compatible Media Type Water, Horsepower 33/1000 hp, Maximum Feet of Head 8 ft, Nameplate Voltage 12V DC, Maximum Flow Rate @ 1 Foot of Head 500 gph, Discharge Connection Style NPSM, Intake Connection Style Through-Hull, Discharge Location Side, Amps 2.5 A, Compatible Discharge Pipe Size 3/4 in, Electrical Connection Type Hardwired, Includes 3/4 In. Right Angle Hosebarb Adapter and 3/4 In. Straight Hosebarb Adapter, Compatible Intake Pipe Size 4 in, Intake Thread Type NPS

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
