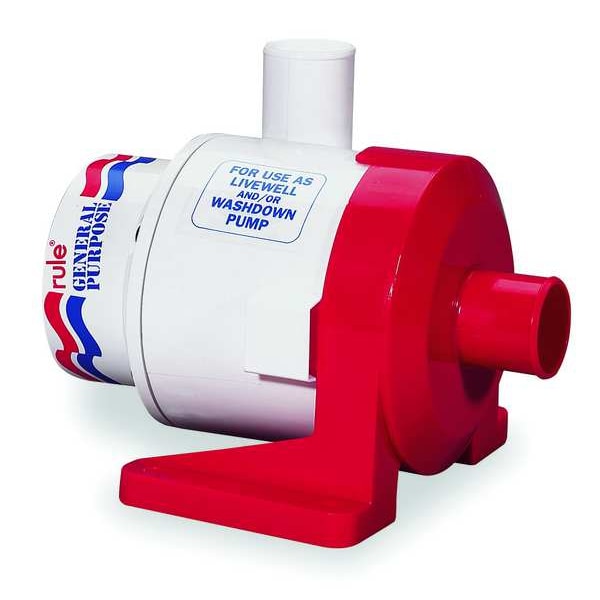

Rule Pump, Centrifugal, 12vdc 17A - main

Pump, Centrifugal, 12vdc

  • Mfr # 17A

  • Zoro # G1536245

product price: $316.99
/ea
Free Shipping & Returns

Key Features

Max. Head
25 ft
Amps
15.5 A
GPM of Water @ 0 Ft. of Head
63.3
Type
Centrifugal
GPH of Water @ 15 Ft. of Head
1600
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
17A
Zoro #
G1536245
UPC #
042237083388
Country of Origin
Mexico

Dimensions

Width (In.)
5-3/4
Height (In.)
5-1/4
Length (In.)
2-7/8
Overall Height
5.25 in
Compatible Discharge Pipe Size
1 1/2 in

Details

Item
Livewell Pump
Max. Head
25 ft
Amps
15.5 A
GPM of Water @ 0 Ft. of Head
63.3
Type
Centrifugal
GPH of Water @ 15 Ft. of Head
1600
Application
Used Primarily for Boat/RV Wash Down, Live Wells, Bait Tanks and Other General Purpose Applications
Hose Outlet (In.)
1-1/2
Includes
Polyacetal Plastic Housing and Stand Construction with Stainless Steel Shaft, Permanent Magnet 12VDC Motor, PTFE Shaft Seal
GPH of Water @ 3.35 Ft. of Head
3185
GPH of Water @ 20 Ft. of Head
800
Voltage
12
Max. Head (Ft.)
25.0
Material
Plastic
GPH of Water @ 0 Ft. of Head
3800
GPH of Water @ 6.7 Ft. of Head
2570
Rated Voltage
12
Body Material
Plastic
Standards
CE, EN 61000-6-1:2001, EN 61000-6-3:2007
Pump Type
Submersible
Maximum Feet of Head
25 ft
Horsepower
33/1000 hp
Priming
Manual
Nameplate Voltage
12V DC
Compatible Media Type
Water
Pump Housing Material
Plastic
Maximum Flow Rate @ 1 Feet of Head
3,800 gph
Electrical Connection Type
Hardwired

Description

Livewell Pump, Compatible Media Type Water, Horsepower 33/1000 hp, Maximum Feet of Head 25 ft, Nameplate Voltage 12V DC, Maximum Flow Rate @ 1 Foot of Head 3,800 gph, Amps 15.5 A, Compatible Discharge Pipe Size 1 1/2 in, Electrical Connection Type Hardwired, Includes Polyacetal Plastic Housing and Stand Construction with Stainless Steel Shaft, Permanent Magnet 12VDC Motor, PTFE Shaft Seal, Overall Height 5.25 in, Priming Manual

Restrictions

Hazardous material
This is a restricted item in the USA. It cannot be used for potable water applications.
