  9. Pump, Submersible, 1/2 I.D., 12V, 4.5 Amp

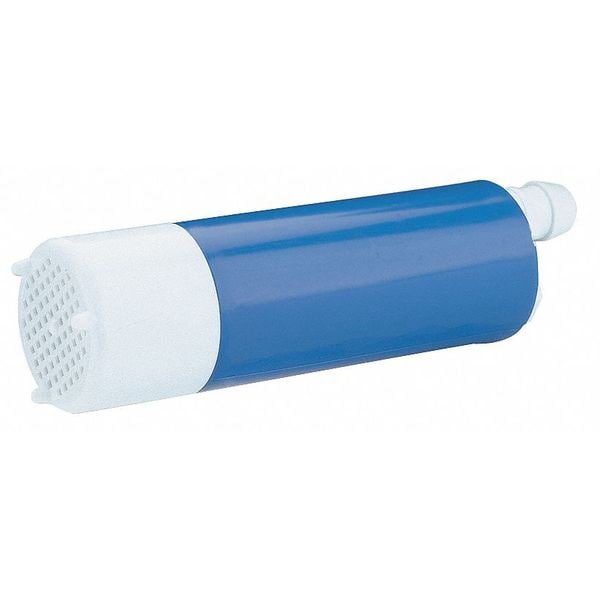

Rule Pump, Submersible, 1/2 I.D., 12V, 4.5 Amp IL200P - main

Pump, Submersible, 1/2 I.D., 12V, 4.5 Amp

  • Mfr # IL200P

  • Zoro # G1227922

product price: $66.79
/ea

Key Features

Max. Head
32 ft
Amps
4.5 A
GPM of Water @ 10 Ft. of Head
2.1
Type
Inline Submersible
Dia. (In.)
1-1/2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IL200P
Zoro #
G1227922
UPC #
689971266327
Country of Origin
China

Dimensions

Dia. (In.)
1-1/2
Cord Length (Ft.)
3
Length (In.)
5-9/16
Diameter
1 1/2 in
Overall Height
5.56 in
Compatible Intake Pipe Size
1/2 in
Cord Length
13 ft
Compatible Discharge Pipe Size
1/2 in

Details

Item
Marine Utility Pump
Max. Head
32 ft
Amps
4.5 A
GPM of Water @ 10 Ft. of Head
2.1
Type
Inline Submersible
GPH of Water @ 15 Ft. of Head
100
Voltage
12VDC
GPH of Water @ 5 Ft. of Head
175
Application
For Use With Fresh Water, Sea Water, Diesel Fuel
Operation
Continuous
GPH of Water @ 20 Ft. of Head
80
GPH of Water @ 3.35 Ft. of Head
190
Max. Temp.
Water - 176 Degrees F/Diesel - 104 Degrees F
Material
Acetal
Max. Head (Ft.)
32
Hose Outlet (In.)
1/2
GPM of Water @ 0 Ft. of Head
3.3
GPH of Water @ 0 Ft. of Head
200
GPH of Water @ 6.7 Ft. of Head
150
GPM of Water @ 15 Ft. of Head
1.66
GPH of Water @ 10 Ft. of Head
130
Flow Rate @ 15 Ft. of Head
1.66 gpm
Rated Voltage
12V DC
Duty Cycle
Continuous
Flow Rate @ 10 Ft. of Head
2.1 gpm
Body Material
Acetal
Flow Rate @ 0 Ft. of Head
3.3 gpm
Maximum Discharge Pressure
7 psi
Horsepower
3/100 hp
Electrical Connection Type
Clamps
Maximum Flow Rate
3 gpm
Pump Activation Type
Electrically Activated
Nameplate Voltage
12V DC
Discharge Connection Style
Barbed
Pump Housing Material
Acetal
Maximum Feet of Head
32 ft
Shut Off Level
8 ft
Intake Connection Style
Barbed
Pump Type
In-Line, Submersible
Includes Gaskets
No
Maximum Media Temperature
176 Degrees F
Priming
Manual
Compatible Media Type
Diesel, Water
Series
Rule
For Use With Potable Systems
Yes

Description

Marine Utility Pump, For Use With Potable Systems Yes, Horsepower 3/100 hp, Maximum Discharge Pressure 7 psi, Maximum Feet of Head 32 ft, Nameplate Voltage 12V DC, Shut Off Level 8 ft, Discharge Connection Style Barbed, Intake Connection Style Barbed, Maximum Flow Rate 3 gpm, Electrical Connection Type Clamps, Maximum Media Temperature 176 Degrees F, Amps 4.5 A, Compatible Discharge Pipe Size 1/2 in, Compatible Intake Pipe Size 1/2 in, Compatible Media Type Diesel, Water, Cord Length 13 ft

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
