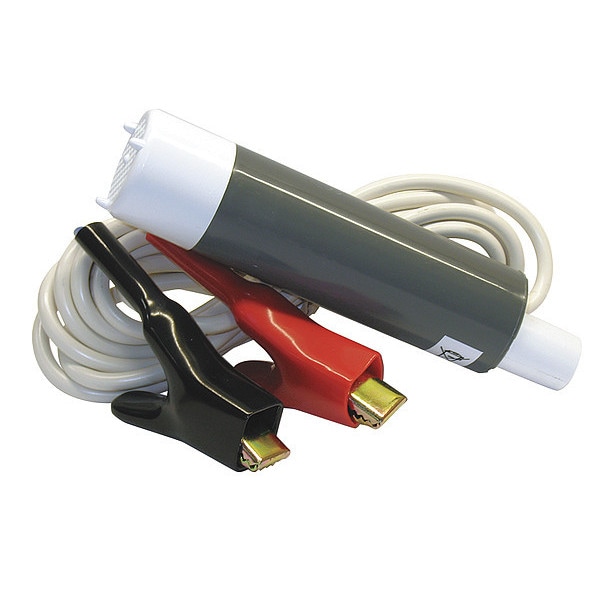

Rule Pump, Submersible, 3/4 I.D., 12V, 6 Amp IL500P - main

Pump, Submersible, 3/4 I.D., 12V, 6 Amp

  • Mfr # IL500P

  • Zoro # G2006051

product price: $91.59
/ea
Free Shipping & Returns

Key Features

Max. Head
32 ft
Amps
6 A
GPM of Water @ 0 Ft. of Head
8.3
Max. Temp.
Water - 176 Degrees F/Diesel - 104 Degrees F
GPM of Water @ 10 Ft. of Head
5.75
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IL500P
Zoro #
G2006051
UPC #
042237109828
Country of Origin
China

Dimensions

Length (In.)
6-1/2
Cord Length (Ft.)
13
Dia. (In.)
1-1/2
Diameter
1 1/2 in
Overall Height
6.5 in
Cord Length
13 ft
Compatible Discharge Pipe Size
3/4 in
Compatible Intake Pipe Size
3/4 in

Details

Item
Marine Utility Pump
Max. Head
32 ft
Amps
6 A
GPM of Water @ 0 Ft. of Head
8.3
Max. Temp.
Water - 176 Degrees F/Diesel - 104 Degrees F
GPM of Water @ 10 Ft. of Head
5.75
GPM of Water @ 15 Ft. of Head
3
GPH of Water @ 0 Ft. of Head
500
Hose Outlet (In.)
3/4
Material
Acetal
Max. Head (Ft.)
32
GPH of Water @ 15 Ft. of Head
255
Application
For Use With Fresh Water, Sea Water, Diesel Fuel
Operation
Continuous
Voltage
12VDC
Type
Inline Submersible
GPH of Water @ 10 Ft. of Head
345
GPH of Water @ 5 Ft. of Head
430
Includes
Battery Clips
GPH of Water @ 6.7 Ft. of Head
380
GPH of Water @ 3.35 Ft. of Head
460
GPH of Water @ 20 Ft. of Head
180
Flow Rate @ 0 Ft. of Head
8.3 gpm
Duty Cycle
Continuous
Flow Rate @ 10 Ft. of Head
5.75 gpm
Rated Voltage
12V DC
Flow Rate @ 15 Ft. of Head
3 gpm
Body Material
Acetal
Pump Type
In-Line, Submersible
Horsepower
3/100 hp
Maximum Media Temperature
176 Degrees F
Pump Activation Type
Electrically Activated
Discharge Connection Style
Barbed
Maximum Flow Rate
8 gpm
Maximum Discharge Pressure
7 psi
Series
Rule
Nameplate Voltage
12V DC
Electrical Connection Type
Clamps
Priming
Manual
Includes Gaskets
No
Maximum Feet of Head
32 ft
Pump Housing Material
Acetal
Intake Connection Style
Barbed
Shut Off Level
8 ft
For Use With Potable Systems
Yes
Compatible Media Type
Diesel, Water

Description

Marine Utility Pump, For Use With Potable Systems Yes, Horsepower 3/100 hp, Maximum Discharge Pressure 7 psi, Maximum Feet of Head 32 ft, Nameplate Voltage 12V DC, Shut Off Level 8 ft, Discharge Connection Style Barbed, Intake Connection Style Barbed, Maximum Flow Rate 8 gpm, Electrical Connection Type Clamps, Maximum Media Temperature 176 Degrees F, Amps 6 A, Compatible Discharge Pipe Size 3/4 in, Compatible Intake Pipe Size 3/4 in, Compatible Media Type Diesel, Water, Cord Length 13 ft

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
