  9. Pump, Submersible, 3/8 I.D., 12V, 2.8 Amp

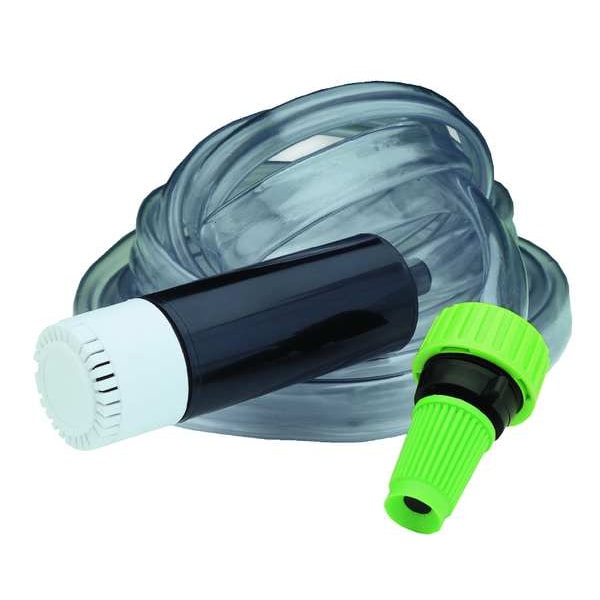

Rule Pump, Submersible, 3/8 I.D., 12V, 2.8 Amp IL200K - main

Pump, Submersible, 3/8 I.D., 12V, 2.8 Amp

  • Mfr # IL200K

  • Zoro # G2074983

product price: $66.29
/ea

Key Features

Max. Head
25 ft
Amps
2.8 A
Max. Temp.
Water - 140 Degrees F
Type
Inline Submersible
GPM of Water @ 10 Ft. of Head
1.91
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IL200K
Zoro #
G2074983
UPC #
042237109934
Country of Origin
China

Dimensions

Length (In.)
5-1/16
Dia. (In.)
1-3/8
Cord Length (Ft.)
13
Overall Height
5.06 in
Diameter
1 3/8 in
Compatible Discharge Pipe Size
3/8 in
Compatible Intake Pipe Size
3/8 in
Cord Length
3 ft
Hose Length
9 ft

Details

Item
Marine Utility Pump
Max. Head
25 ft
Amps
2.8 A
Max. Temp.
Water - 140 Degrees F
Type
Inline Submersible
GPM of Water @ 10 Ft. of Head
1.91
GPM of Water @ 15 Ft. of Head
1.33
GPH of Water @ 0 Ft. of Head
200
Application
For Use With Fresh Water, Sea Water
Hose Outlet (In.)
3/8
Voltage
12VDC
GPH of Water @ 3.35 Ft. of Head
175
GPH of Water @ 20 Ft. of Head
30
GPH of Water @ 10 Ft. of Head
115
GPH of Water @ 5 Ft. of Head
160
Max. Head (Ft.)
25
GPH of Water @ 15 Ft. of Head
80
Includes
Battery Clips, Hose, Nozzle
GPH of Water @ 6.7 Ft. of Head
125
Material
Styrene
Operation
Intermittent
GPM of Water @ 0 Ft. of Head
3.3
Body Material
Styrene
Duty Cycle
Intermittent
Flow Rate @ 0 Ft. of Head
3.3 gpm
Flow Rate @ 15 Ft. of Head
1.33 gpm
Flow Rate @ 10 Ft. of Head
1.91 gpm
Rated Voltage
12V DC
Nameplate Voltage
12V DC
Series
Rule
Horsepower
3/100 hp
Electrical Connection Type
Clamps
Pump Housing Material
Styrene
Pump Type
In-Line, Submersible
Maximum Discharge Pressure
7 psi
Intake Connection Style
Barbed
Maximum Feet of Head
25 ft
Includes Gaskets
No
Shut Off Level
8 ft
Maximum Media Temperature
176 Degrees F
Compatible Media Type
Water
For Use With Potable Systems
Yes
Pump Activation Type
Electrically Activated
Maximum Flow Rate
3 gpm
Priming
Manual
Discharge Connection Style
Barbed

Description

Marine Utility Pump, For Use With Potable Systems Yes, Horsepower 3/100 hp, Hose Length 9 ft, Maximum Discharge Pressure 7 psi, Maximum Feet of Head 25 ft, Nameplate Voltage 12V DC, Shut Off Level 8 ft, Discharge Connection Style Barbed, Intake Connection Style Barbed, Maximum Flow Rate 3 gpm, Electrical Connection Type Clamps, Maximum Media Temperature 176 Degrees F, Amps 2.8 A, Compatible Discharge Pipe Size 3/8 in, Compatible Intake Pipe Size 3/8 in, Compatible Media Type Water

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
