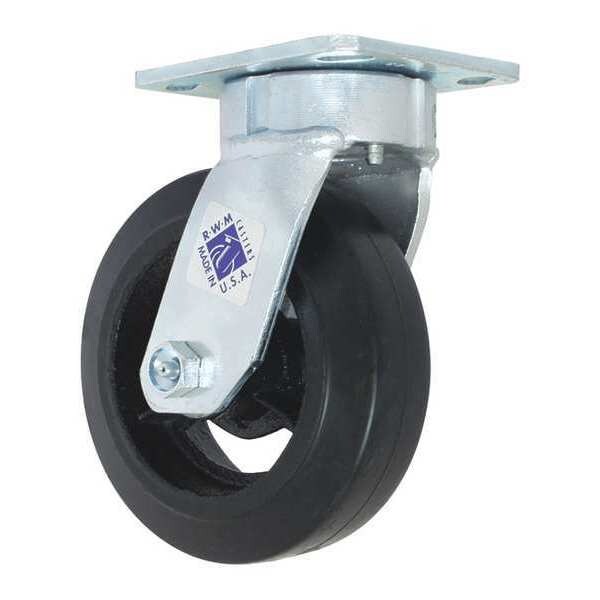

Rwm Kingpinless Plt Cstr, Swvl, Rbr, 6", 410 lb 65-RIR-0620-S-42ST - main

Kingpinless Plt Cstr, Swvl, Rbr, 6", 410 lb

  • Mfr # 65-RIR-0620-S-42ST

  • Zoro # G7275871

product price:  $87.45
/ea
Free Shipping & Returns

Key Features

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Mounting Bolt Dia.
3/8 in
Number of Wheels
1
Overall Height
7-1/2in
Core Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-RIR-0620-S-42ST
Zoro #
G7275871
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Wheel Dia.
6 in
Wheel Width
2 in
Swivel Radius
2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
1/4in

Details

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Sub-Type
Swivel
Number of Wheels
1
Item
Plate Caster
Core Color
Black
Extended Lead
No
Includes
Complete Caster
Standards
ANSI ICWM, ISO 9001
Wheel Color
Black
Caster Temp. Range Available
Yes
Load Rating
410 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Included
No
Caster Frame Material
Steel
Thread Guards
No
Non-Marking
No
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. RIR-0620-08
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
No Brake
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Construction
Kingpinless
Load Rating Range
300 to 999 lb
Wheel Bearing Type
Roller
Swivel Raceway Type
Single Ball
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
Wheel Hardness Rating
75 Shore A
Compatible With
RIR-0620-08
Load Capacity - Maximum
410 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-40 Degrees to 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 410 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
