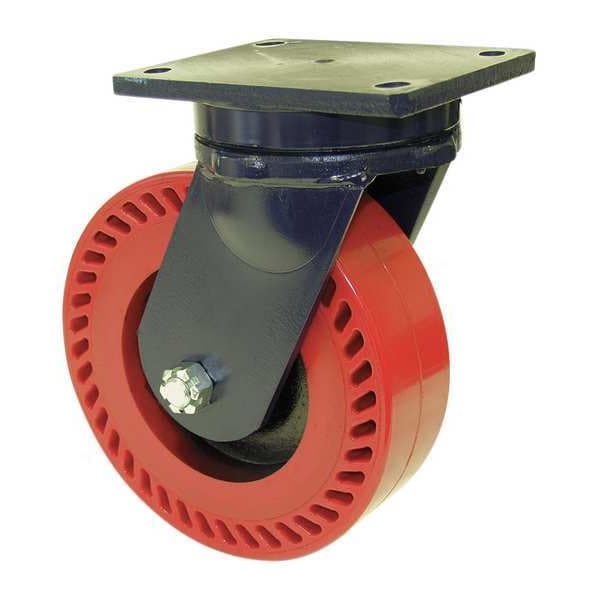

Kingpinless Swivel Plate Caster, 10000 lb

  • Mfr # 95-NYB-0630-S

  • Zoro # G2838711

product price:
$
596.99
/ea
Free Shipping & Returns

Key Features

Wheel Color
Black
Overall Height
8-1/2"
Outside Bolt Hole Spacing
4-1/2 in x 6-1/8 in
Caster Sub-Type
Swivel
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
95-NYB-0630-S
Zoro #
G2838711
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
8-1/2"
Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Mounting Height
8 1/2 in
Mounting Plate Size
6 1/4 in x 7 1/2 in
Mounting Plate Thickness
3/8in

Details

Wheel Color
Black
Outside Bolt Hole Spacing
4-1/2 in x 6-1/8 in
Caster Sub-Type
Swivel
Item
Plate Caster
Number of Wheels
1
Caster Frame Material
Steel
Extended Lead
No
Replacement Wheel
Mfr. No. NYB-0630-12
Inside Bolt Hole Spacing
4-1/8 in x 6 in
Non-Marking
Yes
Frame Finish
Powder Coated
Standards
ANSI ICWM, ISO 9001:2015
Includes
Complete Caster
Caster Plate Hole Pattern
B
Caster Brake Included
No
Thread Guards
No
Load Rating
10,000 lb
Application
Automotive and Tractor Pulled Trailers, Tow Line and Platform Trucks, Utility Carts
Features
Sealed Kingpinless Raceway
Caster Temp. Range Available
Yes
Core Color
Black
Caster Brake Type
No Brake
Wheel Bearing Type
Ball
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Load Rating Range
6000 lb and Greater
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Swivel Raceway Type
Roller
Swivel Construction
Kingpinless
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Compatible With
NYB-0630-12
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
10,000 lb
Operating Temperature Range
-40 Degrees to 300 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 10,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
