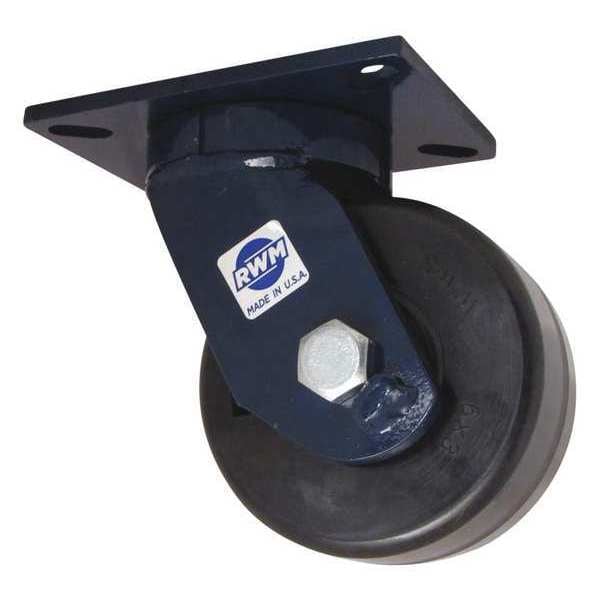

Rwm Kingpinless Swivel Plate Caster, 3000 lb. 76-DUR-0630-S - main

Kingpinless Swivel Plate Caster, 3000 lb.

  • Mfr # 76-DUR-0630-S

  • Zoro # G7223377

product price:  $256.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
3 in
Caster Brake Included
No
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
76-DUR-0630-S
Zoro #
G7223377
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3 in
Wheel Dia.
6 in
Overall Height
8in
Swivel Radius
5 1/2 in
Mounting Bolt Dia.
1/2 in
Mounting Height
8 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8in

Details

Caster Brake Included
No
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Number of Wheels
1
Features
Kingpinless Raceway
Non-Marking
Yes
Thread Guards
No
Includes
Complete Caster
Item
Plate Caster
Load Rating
3000 lb
Extended Lead
Yes
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Standards
ANSI ICWM, ISO 9001:2015
Frame Finish
Powder Coated
Wheel Color
Black
Caster Plate Hole Pattern
A
Replacement Wheel
Mfr. No. DUR-0630-12
Caster Temp. Range Available
Yes
Application
Dollies, Platform Trucks, Utility Carts
Caster Frame Material
Steel
Core Color
Black
Caster Brake Type
No Brake
Tread Shape
Standard
Swivel Construction
Kingpinless
Load Rating Range
3000 to 5999 lb
Swivel Raceway Type
Roller
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Wheel Core Material
Phenolic
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Compatible With
DUR-0630-12
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
3,000 lb
Operating Temperature - Maximum
275 Degrees F
Operating Temperature - Minimum
-65 Degrees F
Operating Temperature Range
-65 Degrees to 275 Degrees F

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
