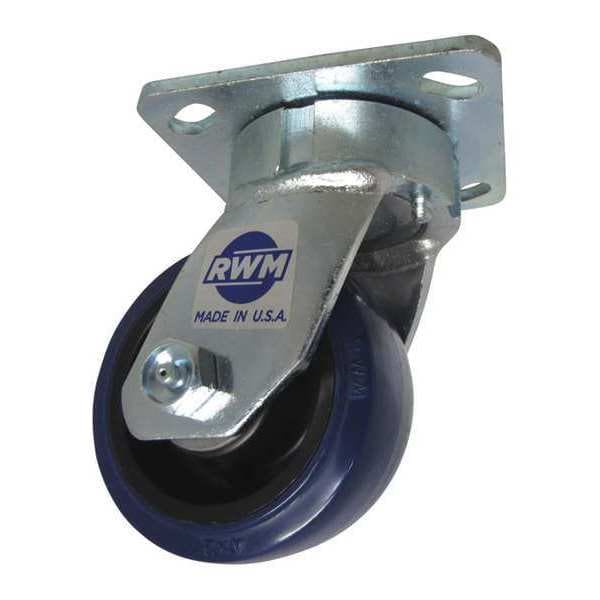

Rwm Kingpinless Swvl Caster, 600 lb, 65-UPR-0420-S - main

Kingpinless Swvl Caster, 600 lb,

  • Mfr # 65-UPR-0420-S

  • Zoro # G7508700

product price:  $82.15
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Swivel Radius
2 in
Wheel Width
2 in
Overall Height
5-5/8in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-UPR-0420-S
Zoro #
G7508700
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
2 in
Wheel Width
2 in
Overall Height
5-5/8in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
1/4in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Caster Brake Included
No
Number of Wheels
1
Caster Frame Material
Steel
Core Color
Gray
Load Rating
600 lb
Thread Guards
No
Includes
Complete Caster
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Temp. Range Available
Yes
Extended Lead
No
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. UPR-0420-08
Item
Plate Caster
Caster Sub-Type
Swivel
Standards
ANSI ICWM, ISO 9001
Wheel Color
Blue
Caster Brake Type
No Brake
Load Rating Range
300 to 999 lb
Swivel Construction
Kingpinless
Tread Shape
Standard
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Roller
Wheel Core Material
Polyolefin
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Compatible With
UPR-0420-08
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
92 Shore A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
