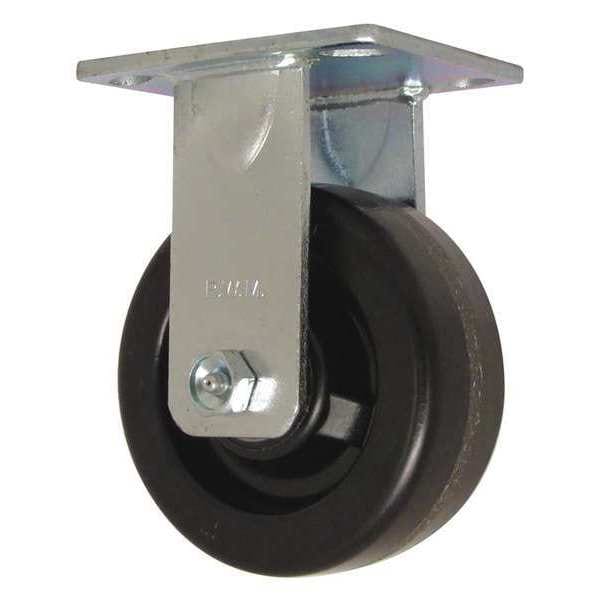

Plate Caster, Rigid, Phenolic, 5", 1000 lb

  • Mfr # 65-DUR-0520-R

  • Zoro # G7508238

product price:  $25.55
/ea

Key Features

Non-Marking
Yes
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Core Color
Black
Thread Guards
No
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-DUR-0520-R
Zoro #
G7508238
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
6-1/2"
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Wheel Dia.
5 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Non-Marking
Yes
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Sub-Type
Rigid
Core Color
Black
Thread Guards
No
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. DUR-0520-08
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Extended Lead
No
Caster Brake Included
No
Item
Plate Caster
Number of Wheels
1
Load Rating
1000 lb
Wheel Color
Black
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM, ISO 9001
Includes
Complete Caster
Caster Brake Type
No Brake
Number of Mounting Holes
4
Includes Thread Guards
No
Tread Shape
Standard
Wheel Bearing Type
Roller
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Phenolic
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Hardness Rating
90 Shore D
Compatible With
DUR-0520-08
Load Capacity - Maximum
1,000 lb
Operating Temperature - Maximum
275 Degrees F
Operating Temperature Range
-40 Degrees to 275 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
