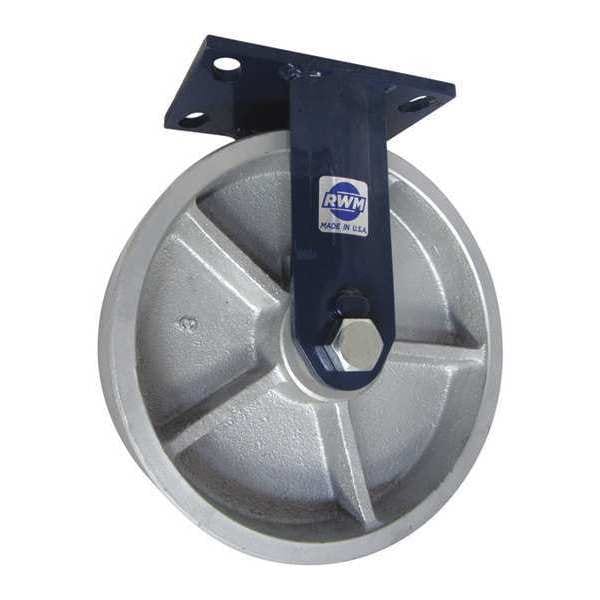

Plate Castr, Rgd, Cast Irn, 10", 4000 lb.

product price: $214.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy-Duty
  • Caster Sub-Type Rigid
  • Caster Product Group Rigid Caster
  • Load Rating 4000 lb
See all product information

Product Information

  • Brand Rwm
  • MFR # 75-CIR-1030-R
  • Zoro # G7276005
  • Country of Origin United States
  • Category Plate Casters

Dimensions

Wheel Dia. 10 in
Wheel Width 3 in
Overall Height 11-1/2"
Mounting Height 11 1/2 in
Mounting Plate Size 4 1/2 in x 6 1/2 in
Mounting Bolt Dia. 1/2 in
Swivel Radius 2 in
Caster Plate Size 4-1/2" x 6-1/2"
Plate Size 4-1/2" x 6-1/2"

Details

Caster Brake Included No
Item Kingpinless Plate Caster
Caster Load Rating Range Heavy-Duty
Caster Sub-Type Rigid
Caster Product Group Rigid Caster
Load Rating 4000 lb
Caster Wheel Shape Standard
Caster Wheel/Tread Material Cast Iron
Wheel/Tread Material Iron
Wheel/Tread Hardness Rating Extra Hard
Wheel Bearing Type Roller
Mounting Plate Bolt Hole Pattern A
Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Powder Coated
Caster Frame Material Steel
Wheel Core Material Cast Iron
Core Color Silver
Application Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Standards ICWM, ISO 9001
Includes Complete Caster
Durometer 50 RC
Caster Core Material Cast Iron
Caster Plate Thickness 5/16"
Extended Lead No
Caster Plate Hole Pattern A
Caster Temp. Range -40 Degrees to 800 Degrees F
Caster Temp. Range Available Yes
Wheel Color Silver
Caster Max. Temp. 800 Degrees F
Thread Guards No
Frame Material Steel
Replacement Wheel Mfr. No. CIR-1030-12
Plate Thickness 5/16"
Caster Min. Temp. -40 Degrees F
Plate Caster Bolt Hole Pattern A
Caster Swivel Lock Type No Lock Included
Caster Wheel Bearings Roller
Includes Thread Guards No
Load Rating Range 3000 to 5999 lb
Tread Shape Standard
Wheel/Tread Hardness Rockwell 50
Wheel/Tread Color Silver

Description

Rigid, Kingpinless Plate Caster, Load Rating 4000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
