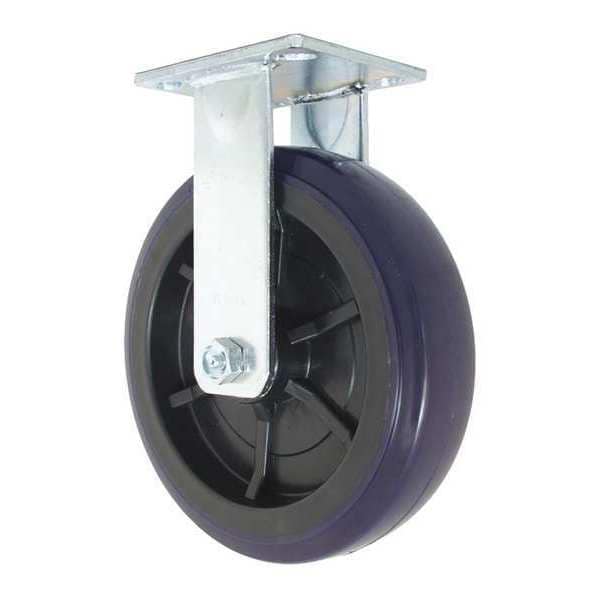

Rwm Plate Cstr, Rgd, Polyurethane, 8", 1000 lb 65-UPC-0820-R-9.5 OAH - main

Plate Cstr, Rgd, Polyurethane, 8", 1000 lb

  • Mfr # 65-UPC-0820-R-9.5 OAH

  • Zoro # G7275950

product price:  $35.89
/ea

Key Features

Thread Guards
No
Extended Lead
No
Includes
Complete Caster
Non-Marking
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
65-UPC-0820-R-9.5 OAH
Zoro #
G7275950
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
9-1/2in
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
9 1/2 in
Mounting Plate Thickness
1/4in

Details

Thread Guards
No
Extended Lead
No
Includes
Complete Caster
Non-Marking
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Replacement Wheel
Mfr. No. UPC-0820-08
Item
Plate Caster
Standards
ANSI ICWM, ISO 9001
Wheel Color
Blue
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Included
No
Caster Frame Material
Steel
Caster Sub-Type
Rigid
Caster Plate Hole Pattern
B
Load Rating
1000 lb
Caster Temp. Range Available
Yes
Number of Wheels
1
Core Color
Gray
Caster Brake Type
No Brake
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Polyolefin
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Compatible With
UPC-0820-08
Load Capacity - Maximum
1,000 lb
Wheel Hardness Rating
92 Shore A
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
