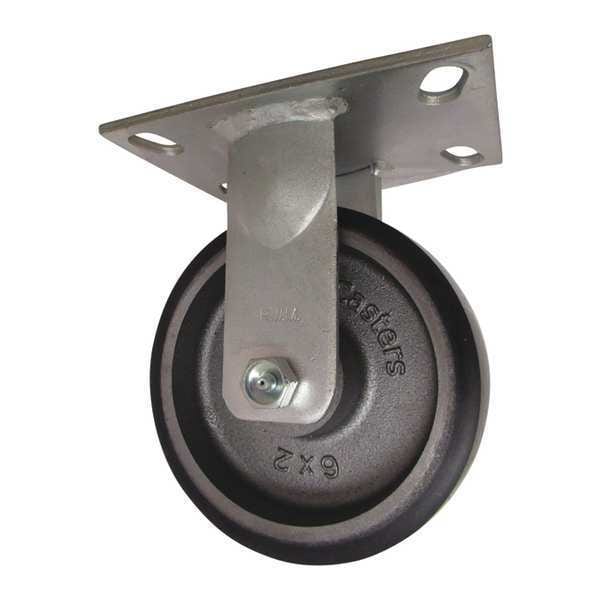

Rwm Plt Cstr, Rgi, Polyurethane, 6", 1230 lb. 65-UIR-0620-R-76RT - main

Plt Cstr, Rgi, Polyurethane, 6", 1230 lb.

  • Mfr # 65-UIR-0620-R-76RT

  • Zoro # G7595309

product price:  $58.29
/ea

Key Features

Number of Wheels
1
Core Color
Gray
Overall Height
7-1/2in
Wheel Color
Blue
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
65-UIR-0620-R-76RT
Zoro #
G7595309
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7-1/2in
Wheel Dia.
6 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 5/8 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
1/4in

Details

Number of Wheels
1
Core Color
Gray
Wheel Color
Blue
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM, ISO 9001
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Non-Marking
Yes
Thread Guards
No
Caster Temp. Range Available
Yes
Load Rating
1230 lb
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Includes
Complete Caster
Caster Brake Included
No
Item
Plate Caster
Extended Lead
No
Caster Sub-Type
Rigid
Replacement Wheel
Mfr. No. UIR-0620-08
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
B
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Caster Brake Type
No Brake
Load Rating Range
1000 to 2999 lb
Tread Shape
Standard
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Hardness Rating
92 Shore A
Compatible With
UIR-0620-08
Load Capacity - Maximum
1,230 lb
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 1230 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
