Rwm Rigid Plate Caster, 600 lb., 95 Shore A S65-UPC-0420-R - main

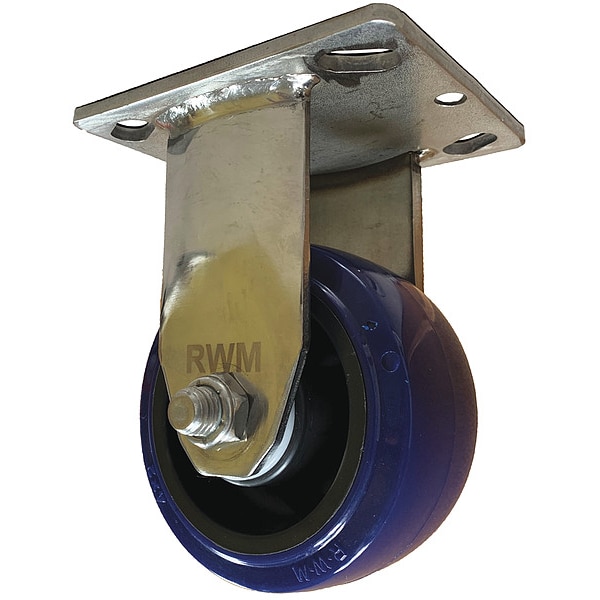

Rigid Plate Caster, 600 lb., 95 Shore A

  • Mfr # S65-UPC-0420-R

  • Zoro # G7315519

product price:  $61.15
/ea

Key Features

Extended Lead
No
Frame Finish
Stainless Steel
Load Rating
600 lb
Includes
Complete Caster
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S65-UPC-0420-R
Zoro #
G7315519
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5-5/8in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
3/16in

Details

Extended Lead
No
Frame Finish
Stainless Steel
Load Rating
600 lb
Includes
Complete Caster
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Caster Frame Material
Stainless Steel
Caster Sub-Type
Rigid
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Item
Plate Caster
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. UPC-0420-08
Thread Guards
No
Caster Brake Included
No
Caster Temp. Range Available
Yes
Non-Marking
Yes
Wheel Color
Blue
Standards
ANSI ICWM, ISO 9001
Core Color
Gray
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel Core Material
Polyolefin
Wheel Bearing Type
Plain
Swivel Lock Type
No Lock Included
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
600 lb
Compatible With
UPC-0420-08
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
