Shop All Plate Casters
Zoro Select

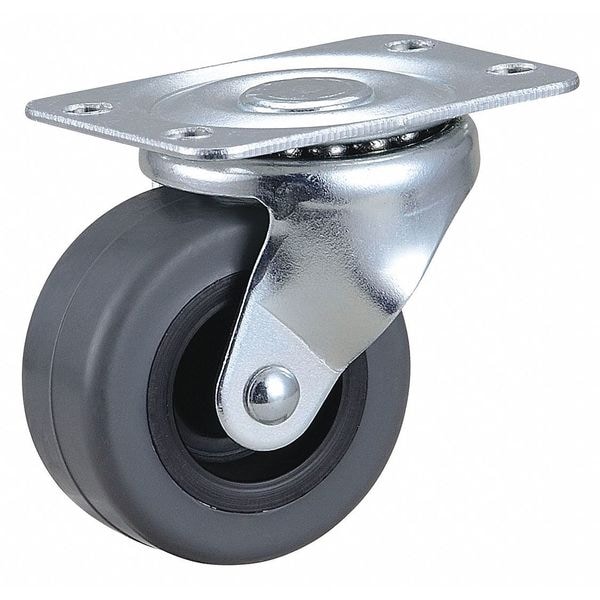

Plate Caster, 2" Wheel Dia., 75 lb., Gray

product price: $2.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 2-15/32"
Wheel Dia. 2 in
Wheel Width 1 in
Mounting Bolt Dia. 1/4 in
Plate Size 1-7/8" x 2-9/16"
Caster Plate Size 1-7/8" x 2-9/16"
Mounting Plate Size 1 7/8 in x 2 9/16 in
Mounting Height 2 7/16 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 75 lb
Number of Wheels 1
Caster Frame Material Steel
Thread Guards No
Frame Material Steel
Non-Marking Yes
Caster Plate Hole Pattern D
Plate Caster Bolt Hole Pattern D
Caster Temp. Range -40 Degrees to 175 Degrees F
Outside Bolt Hole Spacing 15/16 in x 2-1/8 in
Item Standard Plate Caster
Caster Product Group Swivel Caster
Caster Plate Thickness 5/64"
Caster Min. Temp. -40 Degrees F
Durometer 75 Shore A
Core Color Black
Caster Raceway Single Ball
Extended Lead No
Application General Purpose
Caster Swivel Lock Type No Lock Included
Caster Temp. Range Available No
Wheel Color Gray
Caster Max. Temp. 175 Degrees F
Caster Wheel Bearings Plain
Caster Core Material Polyolefin
Plate Thickness 5/64"
Inside Bolt Hole Spacing 15/16 in x 2-1/8 in
Frame Finish Zinc Plated
Standards ANSI/ICWM
Caster Brake Type No Brake Included
Includes Thread Guards No
Number of Mounting Holes 4
Wheel Bearing Type Plain
Swivel Lock Type No Lock Included
Mounting Plate Bolt Hole Pattern D
Tread Shape Standard
Swivel Raceway Type Single Ball
Swivel Construction Kingpin
Wheel/Tread Hardness Rating Soft
Wheel Core Material Plastic
Wheel/Tread Hardness 75 Shore A
Load Rating Range 0 to 299 lb
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Color Gray

Description

Swivel, Standard Plate Caster, Load Rating 75 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 1 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
