  11. Rigid Plate Caster, Nylon, 8 in., 1800 lb.

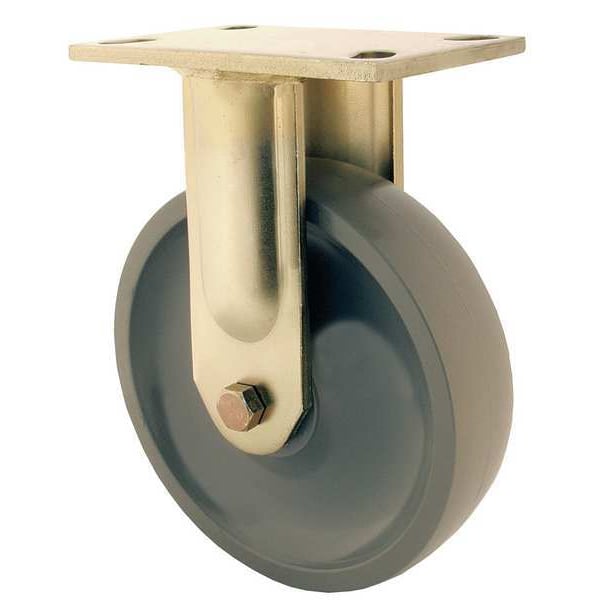

Rwm Rigid Plate Caster, Nylon, 8 in., 1800 lb. 68-GTB-0820-R - main

Rigid Plate Caster, Nylon, 8 in., 1800 lb.

  • Mfr # 68-GTB-0820-R

  • Zoro # G6616452

product price: $115.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Elastomer
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
68-GTB-0820-R
Zoro #
G6616452
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
10 1/8 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/8in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Elastomer
Caster Brake Type
No Brake
Load Rating
1800 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Blue
Wheel Hardness Rating
75 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
B
Standards
ANSI ICWM, ISO 9001:2015
Extended Lead
No
Caster Brake Included
No
Application
Dollies, Platform Trucks, Tow Lines
Thread Guards
No
Includes
Complete Caster
Caster Temp. Range Available
Yes
Wheel Color
Blue
Replacement Wheel
Mfr. No. GTB-0820-08
Frame Finish
Zinc Plated
Features
Maintenance Free
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Rubber
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double/Single Ball
Load Capacity - Maximum
1,800 lb
Compatible With
GTB-0820-08
Caster Features
Maintenance Free
Operating Temperature Range
-40 Degrees to 275 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
275 Degrees F

Description

Rigid, Plate Caster, Load Rating 1800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Elastomer, Wheel Core Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
