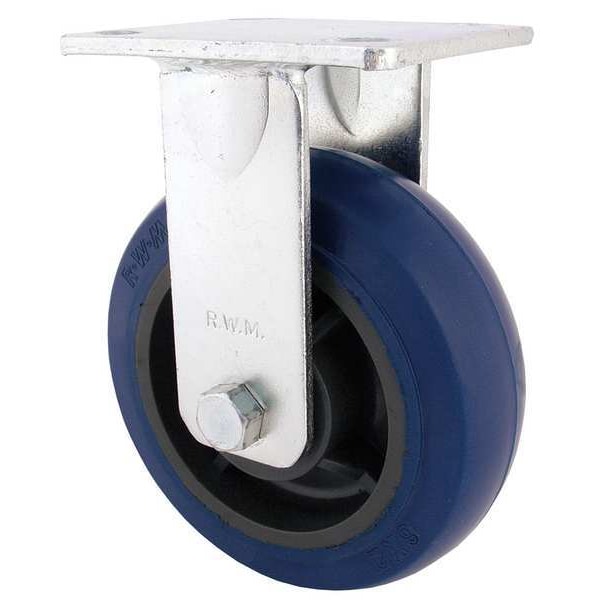

Rigid Plate Caster, Polyurethane, 1000 lb.

  • Mfr # 46-UPR-0820-R

  • Zoro # G7024017

product price:  $42.39
/ea

Key Features

Load Rating
1000 lb
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. UPR-0820-08
Wheel Width
2 in
Caster Sub-Type
Rigid
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
46-UPR-0820-R
Zoro #
G7024017
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Overall Height
9-1/2"
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Load Rating
1000 lb
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. UPR-0820-08
Caster Sub-Type
Rigid
Core Color
Black
Number of Wheels
1
Includes
Complete Caster
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Extended Lead
No
Thread Guards
No
Features
Hardened Raceway
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Application
General Manufacturing Dollies, Rolling Support Equipment
Non-Marking
Yes
Standards
ANSI ICWM
Item
Plate Caster
Frame Finish
Zinc Plated
Caster Brake Included
No
Caster Plate Hole Pattern
B
Wheel Color
Blue
Caster Temp. Range Available
Yes
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Lock Included
System of Measurement
Inch
Wheel Bearing Type
Roller
Compatible With
UPR-0820-08
Load Capacity - Maximum
1,000 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Tread Shape Standard
