  11. Rigid Plate Caster, Polyurethane, 2000 lb.

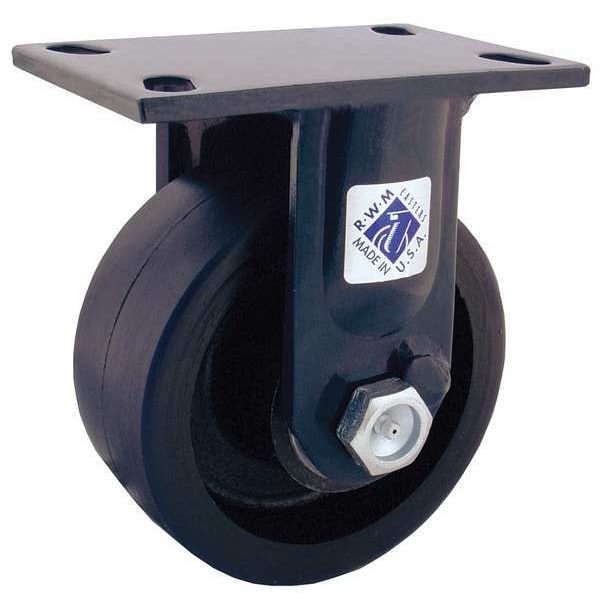

Rwm Rigid Plate Caster, Polyurethane, 2000 lb. 75-UIR-0630-R - main

Rigid Plate Caster, Polyurethane, 2000 lb.

  • Mfr # 75-UIR-0630-R

  • Zoro # G6685926

product price: $244.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
7 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
75-UIR-0630-R
Zoro #
G6685926
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16in
Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
2000 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Blue
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
B
Extended Lead
No
Caster Brake Included
No
Frame Finish
Powder Coated
Includes
Complete Caster
Replacement Wheel
Mfr. No. UIR-0630-12
Application
Tow Lines
Features
Kingpinless Raceway
Thread Guards
No
Caster Temp. Range Available
Yes
Standards
ANSI ICWM, ISO 9001:2015
Wheel Color
Blue
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Roller
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Compatible With
UIR-0630-12
Load Capacity - Maximum
2,000 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
