  11. Swivel Plate Caster, Rubber, 8 in., 750 lb.

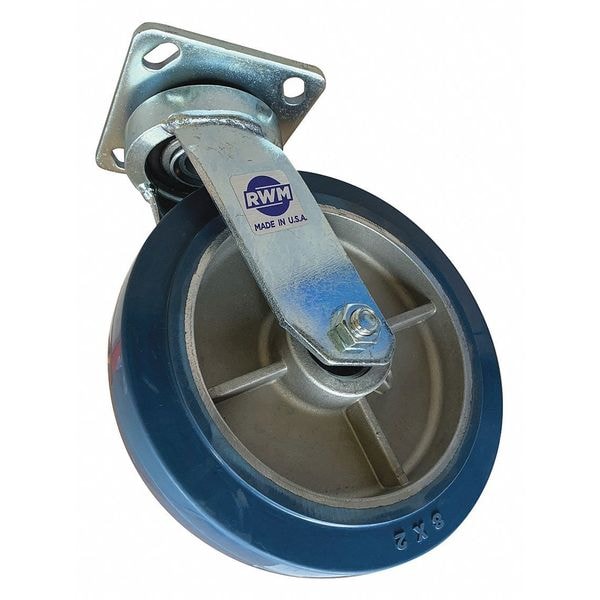

Rwm Swivel Plate Caster, Rubber, 8 in., 750 lb. 48-RAB-0820-S-EHT - main

Swivel Plate Caster, Rubber, 8 in., 750 lb.

  • Mfr # 48-RAB-0820-S-EHT

  • Zoro # G6644513

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48-RAB-0820-S-EHT
Zoro #
G6644513
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
750 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Blue
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Plate Hole Pattern
B
Caster Brake Included
No
Thread Guards
No
Caster Temp. Range Available
Yes
Includes
Complete Caster
Caster Stem Type
No Stem/Plate Included
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Wheel Color
Blue
Features
Maintenance Free
Replacement Wheel
Mfr. No. RAB-0820-08
Application
Dollies, Floor Trucks, Shop Carts, Waste Disposal Trucks
Extended Lead
No
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Aluminum
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double/Single Ball
Compatible With
RAB-0820-08
Load Capacity - Maximum
750 lb
Caster Features
Maintenance Free
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
0 Degrees F
Operating Temperature Range
0 Degrees to 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
