  15. Fuel Pump Shutdown Push Button, Red, SPDT

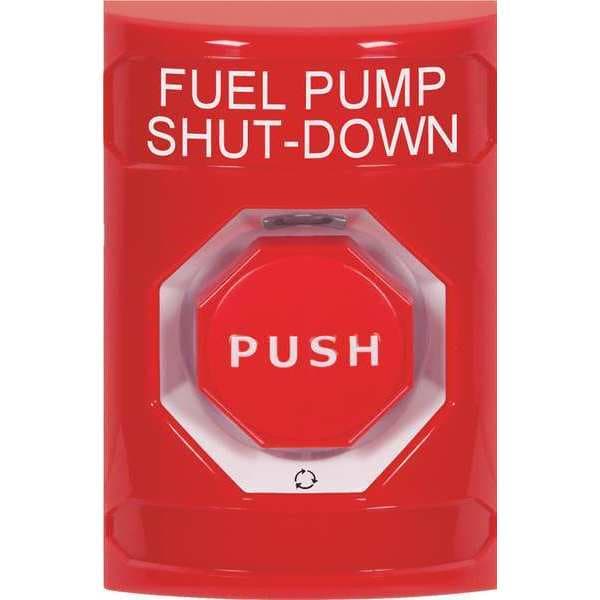

Safety Technology International Fuel Pump Shutdown Push Button, Red, SPDT SS2009PS-EN - main

Fuel Pump Shutdown Push Button, Red, SPDT

  • Mfr # SS2009PS-EN

  • Zoro # G5489578

product price: $54.99
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SS2009PS-EN
Zoro #
G5489578
UPC #
662950500650
Country of Origin
United States

Dimensions

Depth
2 7/8 in
Height
4 7/8 in
Button Dia.
1-1/2 in
Width
3 1/4 in
Overall Width
3 1/4 in
Overall Height
4 7/8 in
Overall Depth
3 3/16 in

Details

Item
Emergency Stop Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Polycarbonate
Standards
CSA C22.2 No. 205, UL 294 (Models Used with LT-1UL), UL and cUL Listed No. S7255
For Use With
Access Control, Emergency Systems
Cylinder
No
Button Color
Red
Input Voltage
125 to 250V AC, 30V DC
Switch Action
Turn-to-Reset
Rating
10A @ 125 or 250V AC, 6A @ 30V DC
Includes
(2) Form "C" Contacts, 12 to 24V AC/DC LED Multicolor Illumination Bar
Amps AC
10A @125 or 250V AC
Color
Red
Output
SPDT Relay
Event Audit Trail
No
Finish
Painted
Keypad
No
Type
Turn-To-Reset
Operating Temp.
-40 Degrees to 250 Degrees F
Material
Polycarbonate
Supports Touchless Operation
No
ADA Compliant
Yes
Features
LED Illumination Bar Color Options: Red, Green, and White
Power Source
AC/DC Power
Supports Operation Type
Push-Button Operation
Product Type
Fuel Pump Shutdown Push Button
Includes Hardware
Hardware Included
Operation Type
Push Button
Mortise/Cylindrical
Mortise
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operation Style
Manual

Description

Fuel Pump Shutdown Push Button, Type Turn-To-Reset, Switch Action Turn-to-Reset, Material Polycarbonate, Finish Painted, Depth 2 7/8 in, Height 4 7/8 in, Width 3 1/4 in, Button Color Red, Color Red, Button Dia. 1-1/2 in, Rating 10A @ 125 or 250V AC, 6A @ 30V DC, Input Voltage 125 to 250V AC, 30V DC, Output SPDT Relay, Amps AC 10A @ 125 or 250V AC, Operating Temp. -40 Degrees to 250 Degrees F, Event Audit Trail No, Keypad No, Cylinder No
