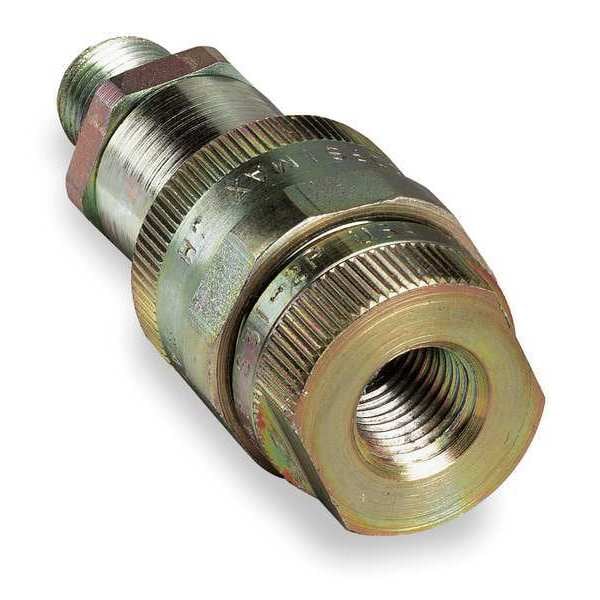

Hydraulic Quick Connect Hose Coupling, Steel Body, Thread-to-Connect Lock, 1/4"-18 Thread Size

  • Zoro #: G2110254
  • Mfr #: S30-2P
Tap to zoom
Hover or click to zoom
$62.36
  • Quick Coupler Type: Hydraulic Coupler Set
  • Item: Hydraulic Quick Connect Hose Coupling
  • Coupler Interchange Type: S30
See full product details
Orders over $75 ship free.

Safeway Hydraulics #S30-2P Specifications

  • Zoro #: G2110254
  • Mfr #: S30-2P
  • Quick Coupler Type: Hydraulic Coupler Set
  • Item: Hydraulic Quick Connect Hose Coupling
  • Coupler Interchange Type: S30
  • Connection Type: NPT
  • Coupler Thread Size: 1/4"-18
  • Coupler Body Size: 1/4"
  • Coupler Flow Rate: 3.0 gpm
  • Max. Pressure: 10,000 psi
  • Coupler Body Material: Steel
  • Sleeve Material: Steel
  • Coupler Finish: Trivalent Chromium Zinc
  • Series: S30
  • Body Material: Steel
  • Coupling Locking Type: Thread-to-Connect
  • Thread Size: 1/4"-18
  • Locking Mechanism: Screw Together
  • Includes: -
  • Operating Temp. Range: -40 Degrees to 250 Degrees F
  • Valve Design: Poppet
  • Coupler Connection Type: FNPT
  • Seal Material: Nitrile
  • Shut Off: double
  • Standards: -
  • Parker Interchange: 3000-2
  • Hansen Interchange: WA 56517 00 & WA 56514 00
  • Seal Type: Captive Valve
  • For Use With: Mfr. No. P-142, RSM-50
  • Overall Length: 2 17/64 in
  • Max. Flow Rate: 12 lpm
  • Includes Shut Off: Yes
  • Valve Type: Ball
  • Pull Ring Material: PTFE
  • Max. Working Pressure @ 70 F: 10,000 psi
  • Max. Outside Dia.: 1 3/16 in
  • Finish/Coating: Trivalent Chromium Zinc
  • Includes Valve: Yes
  • Hose Fitting Gender: (1) Male; (1) Female
  • Coupling Component: Set
  • Coupling Size: 1/4 in
  • Maximum Vacuum: 27.4 in Hg
  • Includes Bearing: No
  • Fitting Type: FNPT and MNPT
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Hydraulic Quick Connect Hose Coupling, Set, S30 Series, Steel, Coupling Size 1/4 in, (1) Male; (1) Female, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 12 lpm
