  5. 1/4 Turn Latch Electrical Enclosures, 32 in H, 9-3/4 in D, 15 in W, NEMA 1, Carbon Steel

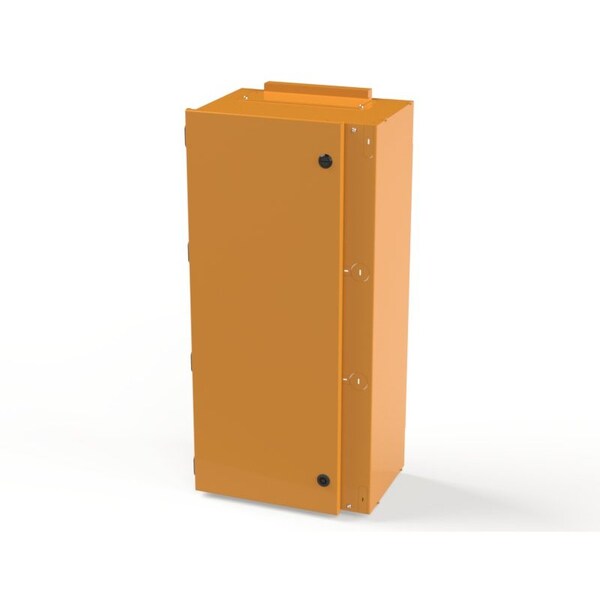

Saginaw Control & Engineering 1/4 Turn Latch Electrical Enclosures, 32 in H, 9-3/4 in D, 15 in W, NEMA 1, Carbon Steel SCE-400AFSD - main

1/4 Turn Latch Electrical Enclosures, 32 in H, 9-3/4 in D, 15 in W, NEMA 1, Carbon Steel

  • Mfr # SCE-400AFSD

  • Zoro # G211164789

product price:  $290.99
/ea
Free Shipping & Returns

Key Features

Nominal Width
15 in
Nominal Height
32 in
Nominal Depth
9-3/4 in
NEMA Enclosure Rating
NEMA 1
Enclosure Material
Carbon Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SCE-400AFSD
Zoro #
G211164789
UPC #
-
Country of Origin
United States

Dimensions

Nominal Width
15 in
Nominal Height
32 in
Nominal Depth
9-3/4 in

Details

Item
Electrical Enclosures
NEMA Enclosure Rating
NEMA 1
Enclosure Material
Carbon Steel
Closure Method
1/4 Turn Latch
Cover Closure Type
Hinged
Metallic / Non-Metallic
Metallic
Color
Orange
Finish
Texture Powder Coated
Cover Style
Solid
IP Rating
IP 30
Standards
NEMA Type 1; UL Listed Type 1; CSA Type 1; IEC 60529; IP 30
Application
Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used within an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components when the Internal Disconnect Enclosure cover is closed; The Internal Disconnect Enclosure can be easily incorporated into a new system or added to a pre-existing system on variable depth or cable operated disconnects. Aids in achieving compliance with NFPA 70E by concealing main power supply.

Description

  • •Orange texture powder coat.
  • •Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used within an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components when the Internal Disconnect Enclosure cover is closed. The Internal Disconnect Enclosure can be easily incorporated into a new system or added to a pre-existing system on variable depth or cable operated disconnects. Aids in achieving compliance with NFPA 70E by concealing main power supply.
  • •0.060 In. carbon steel.
  • •110 degree door stop prevents incidental contact with other components.
  • •Black quarter turn latch.
  • •Removable continuous hinges.
