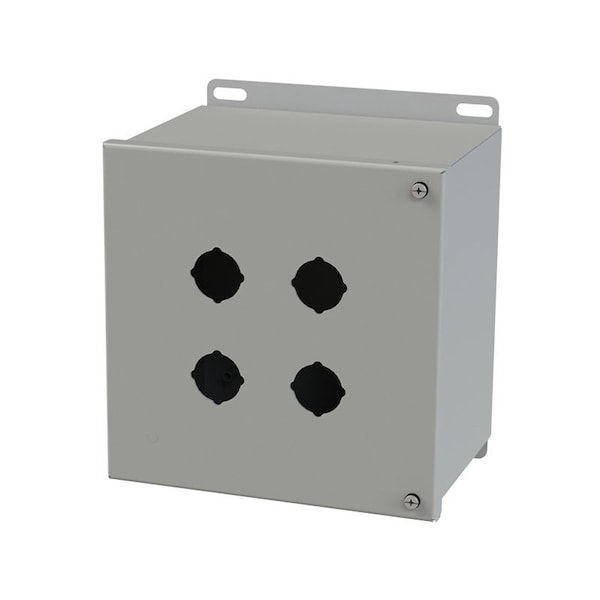

Saginaw Control & Engineering Hinged PB Enclosure SCE-4SPBH - main

Hinged PB Enclosure

  • Mfr # SCE-4SPBH

  • Zoro # G911153434

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Height
8.125 in
Width
8 in
Depth
6 in
Standards
IEC 60529
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SCE-4SPBH
Zoro #
G911153434
UPC #
-
Country of Origin
United States

Dimensions

Height
8.125 in
Width
8 in
Depth
6 in

Details

Standards
IEC 60529
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Application
Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.
Notes
Add ''I'' to catalog number to receive with 22.5mm hole diameter
Description
Hinged PB Enclosure
Construction
0.063 In. carbon steel; Continuously welded seams; Captivated cover screws thread into sealed wells; 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm); Bolt-on continuous hinge with stainless steel hinge pin; Provisions for removable subpanel, supported by standoffs; Ground stud on door; Pour in place oil & water resistant gasket; Welded mounting provision top and bottom of back.

Description

  • •ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
  • •Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.
  • •0.063 In. carbon steel.
  • •4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
  • •Bolt-on continuous hinge with stainless steel hinge pin.
  • •Welded mounting provision top and bottom of back.
