  5. Hinged Window, 12 in. H x 16 in. W x 1-1/2 in. L, 304 Stainless Steel, Polycarbonate

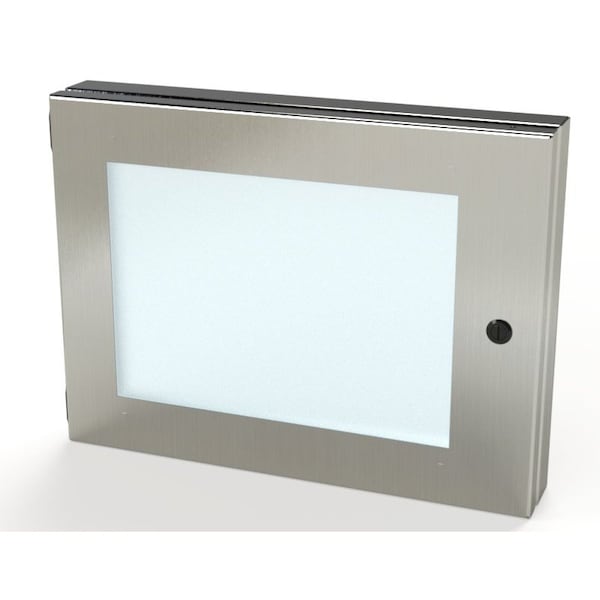

Saginaw Control & Engineering Hinged Window, 12 in. H x 16 in. W x 1-1/2 in. L, 304 Stainless Steel, Polycarbonate SCE-HWK1216SS - main

Hinged Window, 12 in. H x 16 in. W x 1-1/2 in. L, 304 Stainless Steel, Polycarbonate

  • Mfr # SCE-HWK1216SS

  • Zoro # G111154538

product price:  $828.99
/ea
Free Shipping & Returns

Key Features

Dimension
12 in. H x 16 in. W x 1-1/2 in. L
Height
12 in
Width
16 in
Material
304 Stainless Steel, Polycarbonate
Finish
Brushed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SCE-HWK1216SS
Zoro #
G111154538
UPC #
-
Country of Origin
United States

Dimensions

Dimension
12 in. H x 16 in. W x 1-1/2 in. L
Height
12 in
Width
16 in
Length
1-1/2 in
Depth
1.50"

Details

Item
Hinged Window
Material
304 Stainless Steel, Polycarbonate
Finish
Brushed
NEMA Enclosure Type
NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Notes
Recommend use as Type 3R rating if used in full outdoor exposure and extreme weather environments - the addition of ventilation is necessary to handle the large negative pressure differential caused in a tightly sealed enclosure in extreme weather conditions; Temperatures that may exceed 140 degree F, such as outdoor in direct sunlight should be evaluated, shading or sun shield may be necessary; For more details see Design Considerations When Specifying Your Enclosure on our website; UL File #E69392
Application
Designed to mount on the exterior of an enclosure to provide protection for controls with easy access. ELJ hinges. Black mini quarter turn latches. UV stable polycarbonate viewing window. Gasket and hardware included. For outdoor application a drip shield and drain vent is recommended
Viewing Area
8.00 x 11.375
Description
Kit, S.S. Hinged Window
Standards
NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66

Description

  • •Stainless Steel Type 304 with #4 brushed finish.
  • •Designed to mount on the exterior of an enclosure to provide protection for controls with easy access. ELJ hinges. Black mini quarter turn latches. UV stable polycarbonate viewing window. Gasket and hardware included. For outdoor application a drip shield and drain vent is recommended. For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
