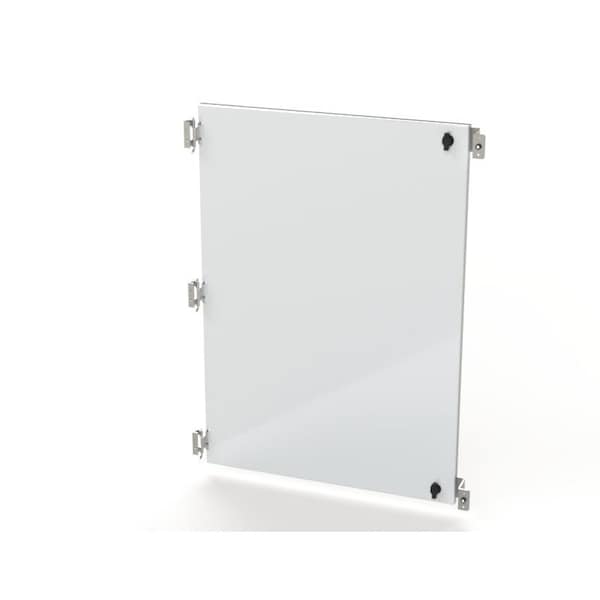

Panel, 38 in. H x 26.63 in. W x 0.83 in. L, Carbon Steel
Mfr # SCE-DF42EL30LP
Zoro # G311156271
product price:
$
223.99
/ea
Free Shipping & Returns
Key Features
For Use With
Wall Mount Enclosures with SCE concealed hinges
Dimension
38 in. H x 26.63 in. W x 0.83 in. L
Height
38 in
Width
26.63 in
Type
Dead Front
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SCE-DF42EL30LP
- Zoro #
- G311156271
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Dimension
- 38 in. H x 26.63 in. W x 0.83 in. L
- Height
- 38 in
- Width
- 26.63 in
- Length
- 0.83 in
- Depth
- 0.83"
Details
- Item
- Panel
- For Use With
- Wall Mount Enclosures with SCE concealed hinges
- Type
- Dead Front
- Material
- Carbon Steel
- Color
- White
- Finish
- Powder Coated
- Application
- Notes
- Cutout will need to be added for clearance of Defeater and defeater hook when use in Flange mount disconnect enclosure
- Construction
- 0.075 In. Carbon Steel.
- Description
- Panel, Dead Front (Wall Mount)
Description
- •Powder coated white inside and out.
- •Designed for use in Wall Mount Enclosures with SCE concealed hinges. Dead front panels are designed as a fixed depth panel to be mounted directly behind the existing hinged door. This allows space to mount: gauges, meters and push buttons directly behind the front door making them easily visible when mounting them through the main door is not an option. Dead front panels also provide a barrier against incidental contact with live components during routine monitoring or maintenance of equipment. Dead front panels are installed by mounting hinges back to back with the existing door hinge of the enclosure and only adding two additional holes on the latching side of the enclosure to mount the latch brackets. Dead Front panels include quarter turn wing knobs for easy entry to the interior and mounting hardware to maintain the environmental rating of the enclosure.
- •0.075 In. Carbon Steel.
