  6. Miniature Snap Action Switch, Lever, Roller Actuator, SPDT, 10A @ 240V AC Contact Rating

This item is Discontinued.

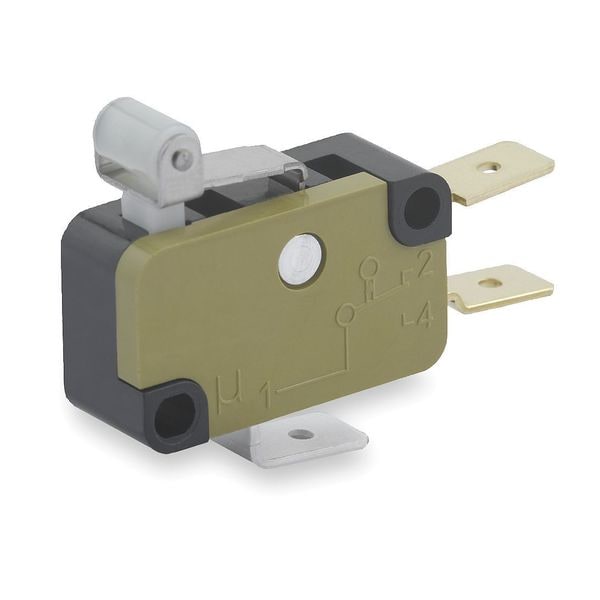

Saia Miniature Snap Action Switch, Lever, Roller Actuator, SPDT, 10A @ 240V AC Contact Rating XGC6-88-S20Z1

Miniature Snap Action Switch, Lever, Roller Actuator, SPDT, 10A @ 240V AC Contact Rating (Discontinued)

  • Mfr # XGC6-88-S20Z1
  • Zoro # G1752021
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XGC6-88-S20Z1
Zoro #
G1752021
UPC #
-
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
0.50 in
Height - Snap Action Switch
0.62 in
Width - Snap Action Switch
1.09 in
Depth - Snap Action Switch
0.41 in
Depth
0.41"
Actuator Length
0.50"
Length
1.09"
Mounting Dimension
22.20 x 10.3mm Centers
Height
0.625"
Mounting Dimension - Snap Action Switch
0.87 in Centers

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
10A @ 240V
Contact Form- Switches
SPDT
Standards
CSA, cUL, ENEC, UL Listed
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Housing Material
Phenolic
Release Force
0.32 oz
Operating Force
2.87 oz
Series
XG
Voltage Rating
125/250VAC
Current Rating
10A
Over Travel
0.759 in
Watertight - Snap Action Switch
No
Type of Actuator
Roller Lever
Terminal Type
3/16" Quick Connect
Operating Temp. Range
-40 Degrees to 194 Degrees F
Differential Travel
0.007 in
Contact Form
SPDT
AC Contact Rating
10 A @ 240 V
Differential Travel - Maximum
0.007 in
Actuator Style
Roller Lever
Overtravel
0.759 in
Electrical Connection
3/16 in Quick Connect

Description

Miniature Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 10A @ 240V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 0.50 in, Height - Snap Action Switch 0.62 in, Width - Snap Action Switch 1.09 in, Depth - Snap Action Switch 0.41 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series XG
