  13. Lever Lockset, Mechanical, Passage, Grade 1

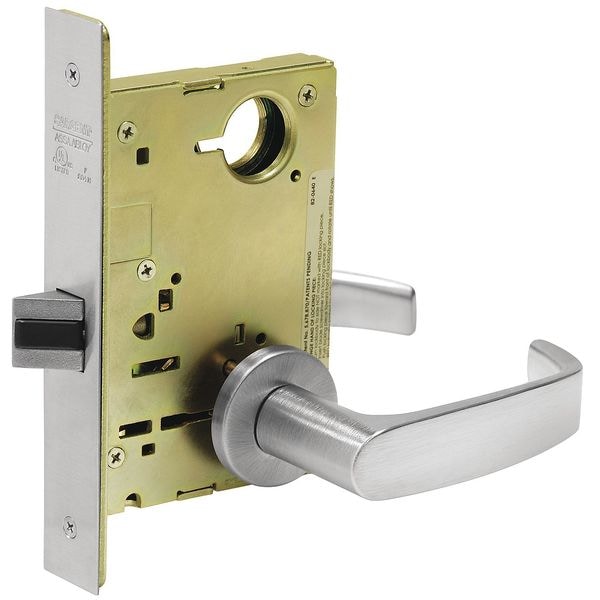

Sargent Lever Lockset, Mechanical, Passage, Grade 1 8215 LNL 26D - main

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # 8215 LNL 26D

  • Zoro # G4606585

product price: $643.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Location Type
Healthcare, Institutional
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8215 LNL 26D
Zoro #
G4606585
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
1 3/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Location Type
Healthcare, Institutional
Lockset Function
Closet, Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Number of Pins
6; 7
Series
8200
Style
8200 Right Angle
Finish
Satin Chrome
ADA Compliant
Yes
Lockset Finish
Satin Chrome
Ligature Resistant
No
Strike Dim.
1-1/4 in x 4-7/8 in
Mortise / Cylindrical
Mortise
Lockset Fire Rating
3 hr
Strike Type
Curved Lip
Item
Door Lockset
Standards
ANSI/BHMA A156.13, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, CAL FIRE, 3025-0006:0111, EPD, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed
Grade
1
Fire Rated
3 hr.
Number of Keys
2
Features
Integrates with All Sargent Key Systems (Degree, Signature, KESO, and XC)
Application
Institutional
Material
Brass, Bronze Stainless Steel and Cold Forged Steel
Function
Passage
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Type
Mortise
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Declare
Handle Type
Lever
Case Material
Brass, Steel, Zinc
UL Fire Rating
UL10C
Trim Plate Shape
Round
ANSI Grade
1
Ligature-Resistant
Not Ligature-Resistant
Locking/Unlocking Access - Inside
Not Lockable
Lockset Type
Mechanical
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Outside
Not Lockable
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Function ANSI Code
F01
Includes Core
Core Not Included
Lockset Style
Non-Cylinder
Hand Orientation
Non-Handed
Performance Grade
1
Fire Rating
3 hr

Description

Lever Lockset, Mortise, Institutional, Health Care, 8200 Series, Right Angle with Rose Style, Satin Chrome Finish, Function Passage, Grade 1, Material Brass, Bronze Stainless Steel and Cold Forged Steel, For Door Thickness 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 8 x 1-1/4 In., Key Type Nickel Silver, ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, No Deadbolt
