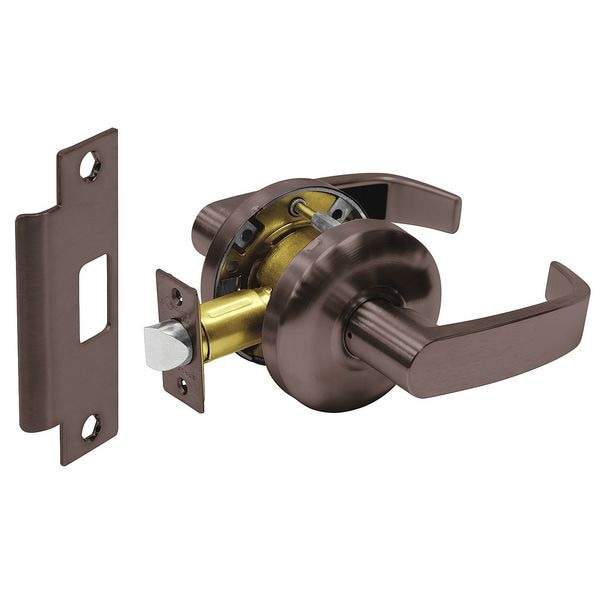

Sargent Lever Lockset, Mechanical, Passage, Grade 2 28-65U15 KL 10B - main

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # 28-65U15 KL 10B

  • Zoro # G4557217

product price: $177.99
/ea
Free Shipping & Returns

Key Features

Lockset Finish
Oil Rubbed Bronze
Lockset Grade
2
Lockset Handle Type
Lever
Material
Wrought and Cast Steel, Brass, Stainless Steel
Mortise / Cylindrical
Cylindrical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
28-65U15 KL 10B
Zoro #
G4557217
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Thickness
1/16 in
Strike Plate Lip Length
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in

Details

Lockset Finish
Oil Rubbed Bronze
Lockset Grade
2
Lockset Handle Type
Lever
Material
Wrought and Cast Steel, Brass, Stainless Steel
Mortise / Cylindrical
Cylindrical
Lockset Function
Closet, Passage
Keyway Type
None
Key Type
Not Keyed
Series
6500
Electrical/Mechanical
Mechanical
Backset
2 3/4 in
Ligature Resistant
No
Lockset Fire Rating
3 hr
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Strike Dim.
4-7/8 in x 1-1/4 in
ADA Compliant
Yes
Handle Material
Brass, Cast Steel, Stainless Steel, Wrought
Style
6500 Right Angle
Location Type
Institutional
Standards
ANSI/BHMA A156.2, Series 4000, Grade 2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed
Mortise/Cylindrical
Cylindrical
Item
Door Lockset
Lockset Performance Strength
Heavy Duty
Strike Type
Curved Lip
Number of Pins
6; 7
Fire Rated
3 hr.
Keying
Keyed Different
Number of Keys
2
Finish
Oxidized Oil Rubbed Bronze
Grade
2
Type
Cylindrical
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Function
Passage
Visual Indicator Message
No Message
Case Material
Steel and Zinc
Trim Plate Shape
Round
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Knob/Handle Material
Bronze
Latch Bolt/Dead Bolt
Latch Bolt
ANSI Grade
2
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Fire Rating
3 hr
Locking/Unlocking Access - Inside
Not Lockable
Locking/Unlocking Access - Outside
Not Lockable
Includes Core
Core Not Included
Lockset Function ANSI Code
F75
Performance Grade
2
Ligature-Resistant
Not Ligature-Resistant
Lockset Style
6500 Lever

Description

Lever Lockset, Cylindrical, Institutional, 6500 Series, Right Angle Style, Oxidized Bronze, Oil Rubbed Finish, Function Passage, Grade 2, Material Wrought and Cast Steel, Brass, Stainless Steel, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Keying Different
