Shop SARGENT

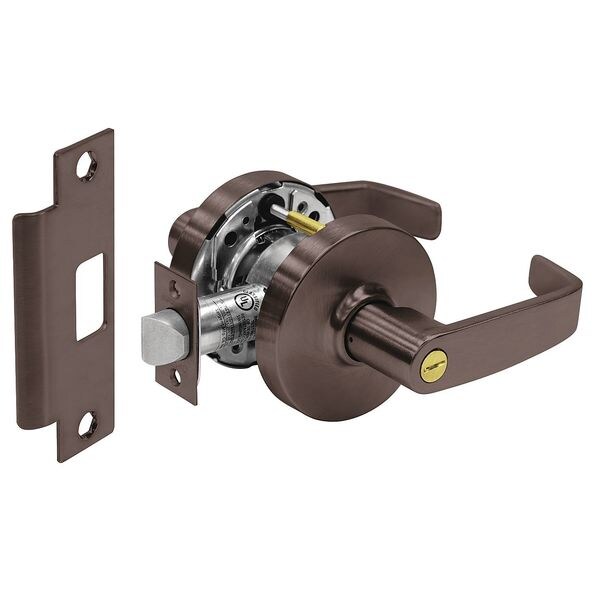

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # 10XU65 LL 10B

  • Zoro # G4539272

product price:
$
496.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Oxidized Oil Rubbed Bronze
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10XU65 LL 10B
Zoro #
G4539272
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Strike Plate Lip Length
1 1/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
2 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Oxidized Oil Rubbed Bronze
Series
10 Line
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
Lockset Finish
Oil Rubbed Bronze
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Mortise/Cylindrical
Cylindrical
Key Type
Not Keyed
Style
10 Line
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL 437, UL and cUL Listed
Lockset Fire Rating
3 hr
Lockset Performance Strength
Heavy Duty
Strike Type
Curved Lip, T-Strike
ADA Compliant
Yes
Mortise / Cylindrical
Cylindrical
Ligature Resistant
No
Lockset Grade
1
Handle Material
Brass, Bronze, Cast Steel, Wrought
Number of Keys
2
Lockset Handle Type
Lever
Keyway Type
Sargent LA
Fire Rated
3 hr.
Keying
Keyed Different
Number of Pins
6; 7
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Material
Wrought and Cast Steel, Brass, Bronze
Case Material
Steel and Zinc
Type
Cylindrical
Function
Privacy
Knob/Handle Material
Bronze
Locking/Unlocking Access - Inside
Push Button
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Performance Grade
1
Includes Core
Core Not Included
Latch Bolt/Dead Bolt
Latch Bolt
Hand Orientation
Non-Handed
Lockset Type
Mechanical
Fire Rating
3 hr
ANSI Grade
1
Application
Commercial, Government, Hospitals, Manufacturing Facilities, Office, Schools
Lockset Function ANSI Code
F76A
Ligature-Resistant
Not Ligature-Resistant
Trim Plate Shape
Round
Lockset Style
10X Line
Locking/Unlocking Access - Outside
Not Lockable

Description

Lever Lockset, Cylindrical, Institutional, 10 Line Series, Right Angle Style, Oxidized Bronze, Oil Rubbed Finish, Function Privacy, Grade 1, Material Wrought and Cast Steel, Brass, Bronze, For Door Thickness 1-3/4 to 2 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Keying Different, Standards Certified ANSI A156.2 Series 4000 Grade 1, UL and CSA Listed, ADA, California Administrative Code Title 19 and 24
