  7. Lever Lockset, Mechanical, Privacy, Grade 1

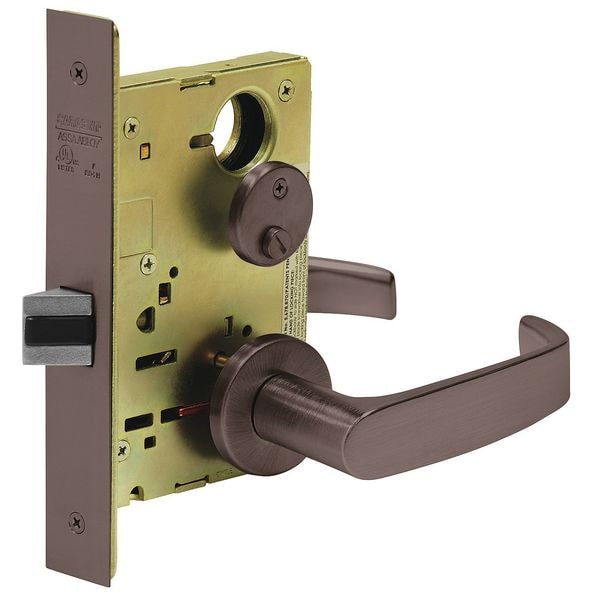

Sargent Lever Lockset, Mechanical, Privacy, Grade 1 8265 LNL 10B - main
Shop SARGENT

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # 8265 LNL 10B

  • Zoro # G4577912

product price:  $701.64
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Healthcare, Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Oxidized Bronze, Oil Rubbed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8265 LNL 10B
Zoro #
G4577912
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Door Thickness - Maximum
1 3/4 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Healthcare, Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Oxidized Bronze, Oil Rubbed
Series
8200
Backset
2 3/4 in
Strike Dim.
1-1/4 in x 4-7/8 in
Mortise/Cylindrical
Mortise
Key Type
Not Keyed
ADA Compliant
Yes
Strike Type
Curved Lip
Lockset Grade
1
Lockset Finish
Oil Rubbed Bronze
Ligature Resistant
No
Mortise / Cylindrical
Mortise
Style
8200 Right Angle
Lockset Handle Type
Lever
Lockset Fire Rating
3 hr
Standards
ANSI/BHMA A156.13, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, CAL FIRE, 3025-0006:0111, EPD, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed
Number of Keys
2
Features
Integrates with All Sargent Key Systems (Degree, Signature, KESO, and XC)
Fire Rated
3 hr.
Keyway Type
None
Number of Pins
6; 7
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Declare
Visual Indicator Message
No Message
Material
Brass, Bronze Stainless Steel and Cold Forged Steel
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Type
Mortise
Handle Type
Lever
Function
Privacy
Case Material
Brass, Steel, Zinc
Locking/Unlocking Access - Inside
Thumb Turn
Hand Orientation
Non-Handed
ANSI Grade
1
Lockset Type
Mechanical
Fire Rating
3 hr
Knob/Handle Material
Bronze
Lockset Function ANSI Code
F22
Locking/Unlocking Access - Outside
Coin Turn
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Ligature-Resistant
Not Ligature-Resistant
Latch Bolt/Dead Bolt
Latch Bolt
Trim Plate Shape
Round
UL Fire Rating
UL10C
Includes Core
Core Not Included
Lockset Style
Non-Cylinder
Application
Institutional
Performance Grade
1

Description

Lever Lockset, Mortise, Institutional, Health Care, 8200 Series, Right Angle with Rose Style, Oxidized Bronze, Oil Rubbed Finish, Function Privacy, Grade 1, Material Brass, Bronze Stainless Steel and Cold Forged Steel, For Door Thickness 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 8 x 1-1/4 In., Key Type Nickel Silver, ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, No Deadbolt
