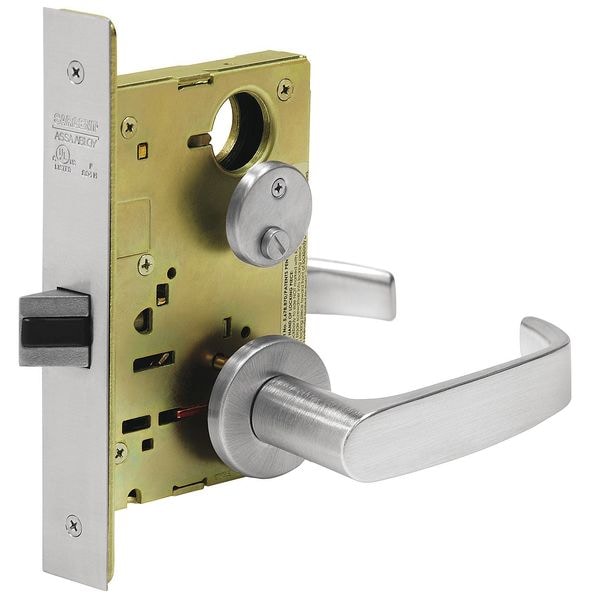

Sargent Lever Lockset, Mechanical, Privacy, Grade 1 8265 LNL 26D - main

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # 8265 LNL 26D

  • Zoro # G4631557

product price:  $732.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Healthcare, Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8265 LNL 26D
Zoro #
G4631557
UPC #
-
Country of Origin
China

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Healthcare, Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
8200
Backset
2 3/4 in
Strike Dim.
1-1/4 in x 4-7/8 in
Lockset Grade
1
Standards
ANSI/BHMA A156.13, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, CAL FIRE, 3025-0006:0111, EPD, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed
Key Type
Not Keyed
Ligature Resistant
No
Lockset Finish
Satin Chrome
Strike Type
Curved Lip
Lockset Handle Type
Lever
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Mortise/Cylindrical
Mortise
Mortise / Cylindrical
Mortise
Style
8200 Right Angle
Number of Pins
6; 7
Keyway Type
None
Fire Rated
3 hr.
Features
Integrates with All Sargent Key Systems (Degree, Signature, KESO, and XC)
Number of Keys
2
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Declare
Material
Brass, Bronze Stainless Steel and Cold Forged Steel
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Function
Privacy
Case Material
Brass, Steel, Zinc
Type
Mortise
Handle Type
Lever
Ligature-Resistant
Not Ligature-Resistant
Lockset Function ANSI Code
F22
ANSI/BHMA Finish
Satin Chromium-Plated
Trim Plate Shape
Round
Fire Rating
3 hr
Hand Orientation
Non-Handed
Locking/Unlocking Access - Outside
Coin Turn
UL Fire Rating
UL10C
Performance Grade
1
Lockset Type
Mechanical
Locking/Unlocking Access - Inside
Thumb Turn
Lockset Style
Non-Cylinder
Includes Core
Core Not Included
Application
Institutional
ANSI Grade
1
Latch Bolt/Dead Bolt
Latch Bolt

Description

Lever Lockset, Mortise, Institutional, Health Care, 8200 Series, Right Angle with Rose Style, Satin Chrome Finish, Function Privacy, Grade 1, Material Brass, Bronze Stainless Steel and Cold Forged Steel, For Door Thickness 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 8 x 1-1/4 In., Key Type Nickel Silver, ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, No Deadbolt
