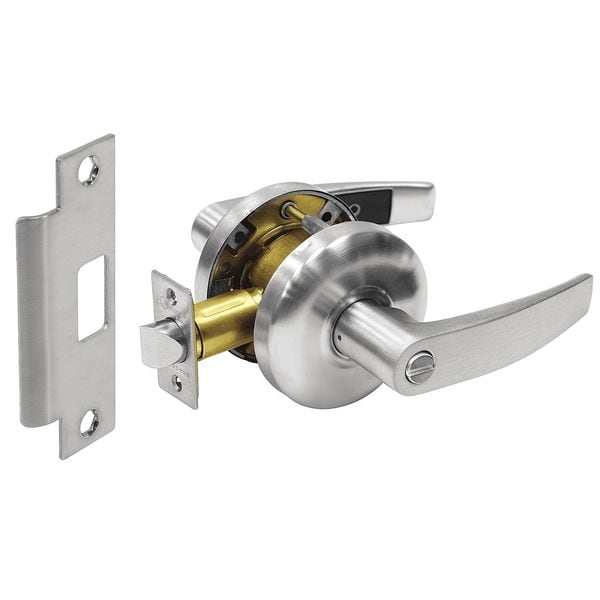

Sargent Lever Lockset, Mechanical, Privacy, Grade 2 28-65U65 KB 26D - main

Lever Lockset, Mechanical, Privacy, Grade 2

  • Mfr # 28-65U65 KB 26D

  • Zoro # G4539394

product price: $186.99
/ea
Free Shipping & Returns

Key Features

Lockset Finish
Satin Chrome
Lockset Grade
2
Lockset Handle Type
Lever
Material
Wrought and Cast Steel, Brass, Stainless Steel
Mortise / Cylindrical
Cylindrical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
28-65U65 KB 26D
Zoro #
G4539394
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Lip Length
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Thickness
1/16 in
Strike Plate Width
1 1/4 in

Details

Lockset Finish
Satin Chrome
Lockset Grade
2
Lockset Handle Type
Lever
Material
Wrought and Cast Steel, Brass, Stainless Steel
Mortise / Cylindrical
Cylindrical
Lockset Function
Privacy
Keyway Type
None
Key Type
Not Keyed
Series
6500
Electrical/Mechanical
Mechanical
Backset
2 3/4 in
ADA Compliant
Yes
Ligature Resistant
No
Handle Material
Brass, Cast Steel, Stainless Steel, Wrought
Style
6500 Curved
Standards
ANSI/BHMA A156.2, Series 4000, Grade 2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed
Lockset Fire Rating
3 hr
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Strike Dim.
4-7/8 in x 1-1/4 in
Location Type
Institutional
Lockset Performance Strength
Heavy Duty
Mortise/Cylindrical
Cylindrical
Strike Type
Curved Lip
Item
Door Lockset
Number of Keys
2
Grade
2
Keying
Keyed Different
Finish
Satin Chrome
Fire Rated
3 hr.
Number of Pins
6; 7
Visual Indicator Message
No Message
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Case Material
Steel and Zinc
Function
Privacy
Type
Cylindrical
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Style
6500 Lever
Locking/Unlocking Access - Outside
Not Lockable
Ligature-Resistant
Not Ligature-Resistant
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Function ANSI Code
F76A
Lockset Type
Mechanical
Fire Rating
3 hr
Locking/Unlocking Access - Inside
Push Button
Hand Orientation
Non-Handed
Knob/Handle Material
Brass, Cast Steel, Stainless Steel
Performance Grade
2
Trim Plate Shape
Round
Includes Core
Core Not Included
ANSI Grade
2

Description

Lever Lockset, Cylindrical, Institutional, 6500 Series, Curved Style, Satin Chrome Finish, Function Privacy, Grade 2, Material Wrought and Cast Steel, Brass, Stainless Steel, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Keying Different, Standards Certified ANSI A156.2 Series 4000 Grade 1, UL and CSA Listed, ADA, California Administrative Code Title 19 and 24
